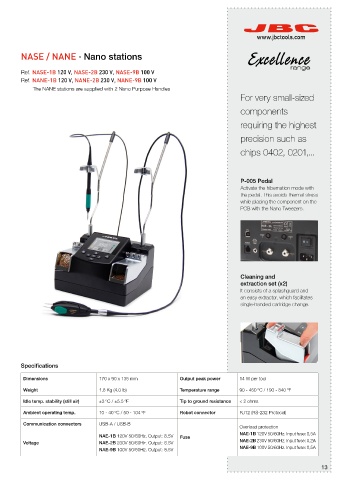

NASE / NANE · Nano stations

Ref. NASE-1B 120 V, NASE-2B 230 V, NASE-9B 100 V
Ref. NANE-1B 120 V, NANE-2B 230 V, NANE-9B 100 V
The NANE stations are supplied with 2 Nano Purpose Handles
For very small-sized

components

requiring the highest

precision such as

chips 0402, 0201,...

P-005 Pedal
Activate the hibernation mode with
the pedal. This avoids thermal stress
while placing the component on the
PCB with the Nano Tweezers.

Cleaning and
extraction set (x2)
It consists of a splashguard and
an easy extractor, which facilitates
single-handed cartridge change.

Specifications

Dimensions 170 x 90 x 135 mm Output peak power 14 W per tool

Weight 1.8 Kg (4.0 lb) Temperature range 90 - 450 ºC / 190 - 840 ºF
Idle temp. stability (still air) ±3 ºC / ±5.5 ºF Tip to ground resistance < 2 ohms

Ambient operating temp. 10 - 40 ºC / 50 - 104 ºF Robot connector RJ12 (RS-232 Protocol)
Communication connectors USB-A / USB-B
Overload protection
NAE-1B 120V 50/60Hz. Output: 8.5V Fuse NAE-1B 120V 50/60Hz. Input fuse: 0,5A
Voltage NAE-2B 230V 50/60Hz. Output: 8.5V NAE-2B 230V 50/60Hz. Input fuse: 0,2A
NAE-9B 100V 50/60Hz. Output: 8.5V NAE-9B 100V 50/60Hz. Input fuse: 0,5A

13
