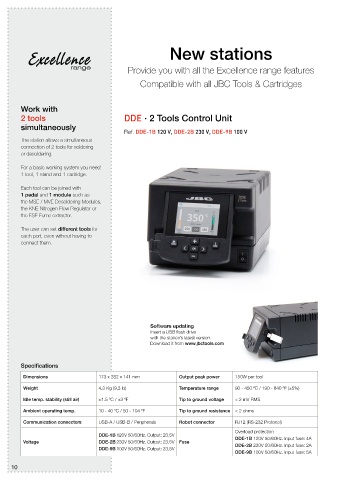

Page 10 - JBC Excellence széria

New stations

Provide you with all the Excellence range features

Compatible with all JBC Tools & Cartridges

Work with
2 tools DDE · 2 Tools Control Unit
simultaneously
Ref. DDE-1B 120 V, DDE-2B 230 V, DDE-9B 100 V
The station allows a simultaneous
connection of 2 tools for soldering
or desoldering.

For a basic working system you need
1 tool, 1 stand and 1 cartridge.
Each tool can be joined with
1 pedal and 1 module such as
the MSE / MVE Desoldering Modules,
the KNE Nitrogen Flow Regulator or
the FSE Fume extractor.

The user can set different tools for
each port, even without having to
connect them.

Software updating
Insert a USB flash drive
with the station’s latest version.
Download it from www.jbctools.com

Specifications

Dimensions 173 x 282 x 141 mm Output peak power 150W per tool
Weight 4,3 Kg (9,3 lb) Temperature range 90 - 450 ºC / 190 - 840 ºF (±5%)

Idle temp. stability (still air) ±1.5 ºC / ±3 ºF Tip to ground voltage < 2 mV RMS
Ambient operating temp. 10 - 40 ºC / 50 - 104 ºF Tip to ground resistance < 2 ohms

Communication connectors USB-A / USB-B / Peripherals Robot connector RJ12 (RS-232 Protocol)
Overload protection
DDE-1B 120V 50/60Hz. Output: 23,5V
Voltage DDE-2B 230V 50/60Hz. Output: 23,5V Fuse DDE-1B 120V 50/60Hz. Input fuse: 4A
DDE-2B 230V 50/60Hz. Input fuse: 2A
DDE-9B 100V 50/60Hz. Output: 23,5V
DDE-9B 100V 50/60Hz. Input fuse: 5A
