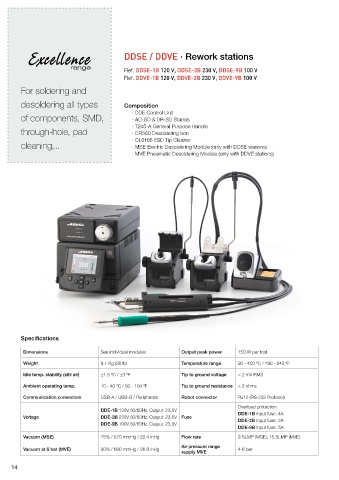

DDSE / DDVE · Rework stations

Ref. DDSE-1B 120 V, DDSE-2B 230 V, DDSE-9B 100 V
Ref. DDVE-1B 120 V, DDVE-2B 230 V, DDVE-9B 100 V

For soldering and

desoldering all types Composition
· DDE Control Unit
of components, SMD, · AD-SD & DR-SD Stands
· T245-A General Purpose Handle
through-hole, pad · DR560 Desoldering Iron
· CL6166 ESD Tip Cleaner
cleaning,... · MSE Electric Desoldering Module (only with DDSE stations)
· MVE Pneumatic Desoldering Module (only with DDVE stations)

Specifications

Dimensions See individual modules Output peak power 150 W per tool

Weight 9,1 Kg (20 lb) Temperature range 90 - 450 ºC / 190 - 840 ºF

Idle temp. stability (still air) ±1.5 ºC / ±3 ºF Tip to ground voltage < 2 mV RMS
Ambient operating temp. 10 - 40 ºC / 50 - 104 ºF Tip to ground resistance < 2 ohms
Communication connectors USB-A / USB-B / Peripherals Robot connector RJ12 (RS-232 Protocol)
Overload protection
DDE-1B 120V 50/60Hz. Output: 23,5V
Voltage DDE-2B 230V 50/60Hz. Output: 23,5V Fuse DDE-1B Input fuse: 4A
DDE-2B Input fuse: 2A
DDE-9B 100V 50/60Hz. Output: 23,5V
DDE-9B Input fuse: 5A
Vacuum (MSE) 75% / 570 mmHg / 22.4 inHg Flow rate 9 SLMP (MSE), 15 SLMP (MVE)
Air pressure range
Vacuum at 6 bar (MVE) 90% / 680 mmHg / 26.8 inHg 4-6 bar
supply MVE
