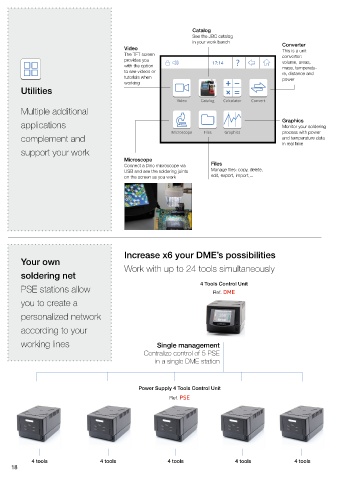

Page 18 - JBC Excellence széria
P. 18
Catalog
See the JBC catalog
in your work bench Converter
Video This is a unit
The TFT screen converter:
provides you volume, areas,
with the option mass, temperatu-
to see videos or re, distance and
tutorials when power
working
Utilities
Multiple additional
applications Graphics
Monitor your soldering
process with power
complement and and temperature data
in real time
support your work
Microscope
Connect a Dino microscope via Files
USB and see the soldering joints Manage files: copy, delete,
on the screen as you work edit, export, import,...
Increase x6 your DME’s possibilities
Your own
soldering net Work with up to 24 tools simultaneously
4 Tools Control Unit
PSE stations allow Ref. DME
you to create a
personalized network
according to your
working lines Single management
Centralize control of 5 PSE
in a single DME station
Power Supply 4 Tools Control Unit
Ref. PSE
4 tools 4 tools 4 tools 4 tools 4 tools
18
