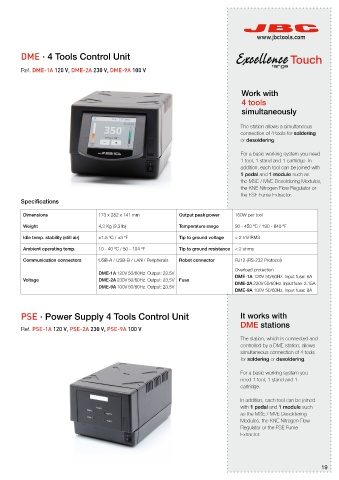

DME · 4 Tools Control Unit                                                                     Touch


        Ref. DME-1A 120 V, DME-2A 230 V, DME-9A 100 V


                                                                                      Work with
                                                                                      4 tools
                                                                                      simultaneously


                                                                                      The station allows a simultaneous
                                                                                      connection of 4 tools for soldering
                                                                                      or desoldering.

                                                                                      For a basic working system you need
                                                                                      1 tool, 1 stand and 1 cartridge. In
                                                                                      addition, each tool can be joined with
                                                                                      1 pedal and 1 module such as
                                                                                      the MSE / MVE Desoldering Modules,
                                                                                      the KNE Nitrogen Flow Regulator or
                                                                                      the FSE Fume Extractor.
        Specifications

         Dimensions                 173 x 282 x 141 mm          Output peak power   160W per tool

         Weight                     4,3 Kg (9,3 lb)             Temperature range   90 - 450 ºC / 190 - 840 ºF

         Idle temp. stability (still air)  ±1.5 ºC / ±3 ºF      Tip to ground voltage  < 2 mV RMS
         Ambient operating temp.    10 - 40 ºC / 50 - 104 ºF    Tip to ground resistance  < 2 ohms
         Communication connectors   USB-A / USB-B / LAN / Peripherals  Robot connector  RJ12 (RS-232 Protocol)
                                                                                    Overload protection
                                    DME-1A 120V 50/60Hz. Output: 23,5V
         Voltage                    DME-2A 230V 50/60Hz. Output: 23,5V  Fuse        DME-1A 120V 50/60Hz. Input fuse: 6A
                                                                                    DME-2A 230V 50/60Hz. Input fuse: 3.15A
                                    DME-9A 100V 50/60Hz. Output: 23,5V
                                                                                    DME-9A 100V 50/60Hz. Input fuse: 8A


        PSE · Power Supply 4 Tools Control Unit                                      It works with
                                                                                     DME stations
        Ref. PSE-1A 120 V, PSE-2A 230 V, PSE-9A 100 V

                                                                                     The station, which is connected and
                                                                                     controlled by a DME station, allows
                                                                                     simultaneous connection of 4 tools
                                                                                     for soldering or desoldering.

                                                                                     For a basic working system you
                                                                                     need 1 tool, 1 stand and 1
                                                                                     cartridge.

                                                                                     In addition, each tool can be joined
                                                                                     with 1 pedal and 1 module such
                                                                                     as the MSE / MVE Desoldering
                                                                                     Modules, the KNE Nitrogen Flow
                                                                                     Regulator or the FSE Fume
                                                                                     Extractor.
