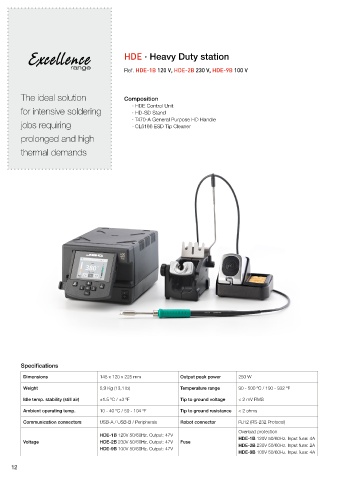

HDE · Heavy Duty station

Ref. HDE-1B 120 V, HDE-2B 230 V, HDE-9B 100 V

The ideal solution Composition
· HDE Control Unit
for intensive soldering · HD-SD Stand

· T470-A General Purpose HD Handle
jobs requiring · CL6166 ESD Tip Cleaner
prolonged and high

thermal demands

Specifications

Dimensions 145 x 120 x 225 mm Output peak power 250 W
Weight 5,9 Kg (13,1 lb) Temperature range 90 - 500 ºC / 190 - 932 ºF

Idle temp. stability (still air) ±1.5 ºC / ±3 ºF Tip to ground voltage < 2 mV RMS
Ambient operating temp. 10 - 40 ºC / 50 - 104 ºF Tip to ground resistance < 2 ohms

Communication connectors USB-A / USB-B / Peripherals Robot connector RJ12 (RS-232 Protocol)
Overload protection
HDE-1B 120V 50/60Hz. Output: 47V
Voltage HDE-2B 230V 50/60Hz. Output: 47V Fuse HDE-1B 120V 50/60Hz. Input fuse: 4A
HDE-2B 230V 50/60Hz. Input fuse: 2A
HDE-9B 100V 50/60Hz. Output: 47V
HDE-9B 100V 50/60Hz. Input fuse: 4A
