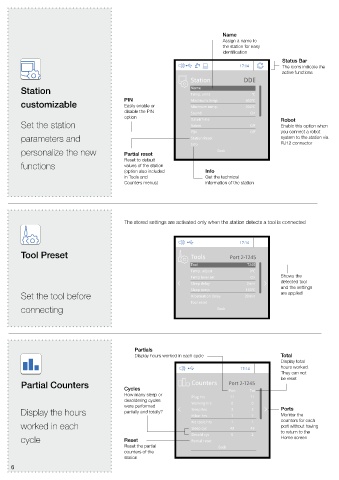

Page 6 - JBC Excellence széria

Name
Assign a name to
the station for easy
identification
Status Bar
17:14 The icons indicate the
active functions
Station DDE
Station Name ºC
Temp. units
customizable PIN Maximum temp. 400ºC
Easily enable or
200ºC
Minimum temp.
disable the PIN Sound On
option Date&Time Robot
Set the station Robot Off Enable this option when
PIN Off you connect a robot
parameters and Station Reset system to the station via
Info RJ12 connector
personalize the new Partial reset Back
Reset to default
functions values of the station
(option also included Info
in Tools and Get the technical
Counters menus) information of the station

The stored settings are activated only when the station detects a tool is connected

17:14
Tool Preset Tools Port 2-T245

Tool T245
Temp. adjust 0ºC
Temp level set On Shows the
Sleep delay 0min detected tool
Sleep temp 180ºC and the settings
Set the tool before Hibernation delay 30min are applied
Tool reset
connecting Back

Partials
Display hours worked in each cycle Total
Display total
17:14 hours worked.
They can not
be reset
Partial Counters Cycles Counters Port 2-T245

How many sleep or Plug hrs Part Tot
11
11
desoldering cycles Working hrs 0 0
were performed Ports
Display the hours partially and totally? Sleep hrs 3 7 3 7 Monitor the
Hiber hrs
1
1
worked in each No tools hrs 43 43 counters for each
port without having
Sleep cyc
Desold cyc 0 2 to return to the
cycle Reset Partial reset Home screen
Reset the partial Back
counters of the
station
6
