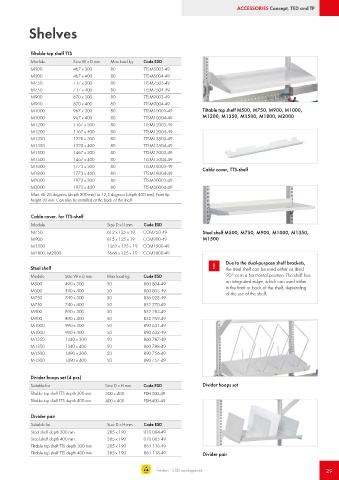

Page 29 - Treston workspaces

ACCESSORIES Concept, TED and TP

Shelves

Tiltable top shelf TTS
Module Size W x D mm Max load kg Code ESD
M500 467 x 300 80 TTSM5003-49
M500 467 x 400 80 TTSM5004-49
M750 717 x 300 80 TTSM7503-49
M750 717 x 400 80 TTSM7504-49
M900 870 x 300 80 TTSM9003-49
M900 870 x 400 80 TTSM9004-49
M1000 967 x 300 80 TTSM10003-49 Tiltable top shelf M500, M750, M900, M1000,
M1000 967 x 400 80 TTSM10004-49 M1200, M1350, M1500, M1800, M2000
M1200 1167 x 300 80 TTSM12003-49
M1200 1167 x 400 80 TTSM12004-49
M1350 1320 x 300 80 TTSM13503-49
M1350 1320 x 400 80 TTSM13504-49
M1500 1467 x 300 80 TTSM15003-49
M1500 1467 x 400 80 TTSM15004-49
M1800 1773 x 300 80 TTSM18003-49 Cable cover, TTS-shelf
M1800 1773 x 400 80 TTSM18004-49
M2000 1973 x 300 80 TTSM20003-49
M2000 1973 x 400 80 TTSM20004-49
Max. tilt 20 degrees (depth 300 mm) or 12,5 degrees (depth 400 mm). Front lip
height 30 mm. Can also be installed at the back of the shelf.

Cable cover, for TTS-shelf
Module Size D x H mm Code ESD
M750 612 x 125 x 19 CCM750-49 Steel shelf M500, M750, M900, M1000, M1350,
M900 815 x 125 x 19 CCM900-49 M1500
M1500 1362 x 125 x 19 CCM1500-49
M1800, M2000 1666 x 125 x 19 CCM1800-49
! Due to the dual-purpose shelf brackets,
Steel shelf the steel shelf can be used either as tilted
Module Size W x D mm Max load kg Code ESD 20° or in a horizontal position. The shelf has
an integrated edge, which can used either
M500 490 x 300 50 860 804-49 in the front or back of the shelf, depending
M500 490 x 400 50 860 805-49 of the use of the shelf.
M750 740 x 300 50 836 028-49
M750 740 x 400 50 852 770-49
M900 890 x 300 50 852 283-49
M900 890 x 400 50 852 769-49
M1000 990 x 300 50 890 631-49
M1000 990 x 400 50 890 632-49
M1350 1340 x 300 50 860 787-49
M1350 1340 x 400 50 860 788-49
M1500 1490 x 300 50 890 756-49
M1500 1490 x 400 50 890 757-49

Divider hoops set (4 pcs)
Suitable for Size D x H mm Code ESD Divider hoops set
Tiltable top shelf TTS depth 300 mm 300 x 400 PDH300-49
Tiltable top shelf TTS depth 400 mm 400 x 400 PDH400-49

Divider pair
Suitable for Size D x H mm Code ESD
Steel shelf depth 300 mm 285 x 190 010 004-49
Steel shelf depth 400 mm 385 x 190 010 005-49
Tiltable top shelf TTS depth 300 mm 285 x 190 861 116-49
Tiltable top shelf TTS depth 400 mm 385 x 190 861 118-49 Divider pair

Treston - ESD workspaces 29
