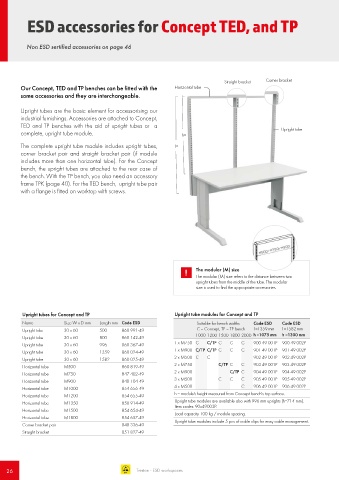

P. 26

ESD accessories for Concept TED, and TP



          Non ESD sertified accessories on page 46






                                                                                Straight bracket  Corner bracket
        Our Concept, TED and TP benches can be fitted with the   Horizontal tube
        same accessories and they are interchangeable.


        Upright tubes are the basic element for accessorising our
        industrial furnishings. Accessories are attached to Concept,
        TED and TP benches with the aid of upright tubes or  a
        complete, upright tube module.                           h=                                 Upright tube

        The complete upright tube module includes upright tubes,   l=
        corner bracket pair and straight bracket pair (if module
        includes more than one horizontal tube). For the Concept
        bench, the upright tubes are attached to the rear case of
        the bench. With the TP bench, you also need an accessory
        frame TPK (page 40). For the TED bench,  upright tube pair
        with a flange is fitted on worktop with screws.
















                                                                  !   The modular (M) size
                                                                      The modular (M) size refers to the distance between two
                                                                      upright tubes from the middle of the tube. The modular
                                                                      size is used to find the appropriate accessories.




         Upright tubes for Concept and TP                     Upright tube modules for Concept and TP
         Name           Size W x D mm  Length mm Code ESD             Suitable for bench widths  Code ESD  Code ESD
         Upright tube   30 x 60     500     860 991-49                C = Concept, TP = TP bench  l =1359 mm  l =1582 mm
                                                                      1000 1200 1500 1800 2000  h =1075 mm  h =1300 mm
         Upright tube   30 x 60     800     860 142-49
         Upright tube   30 x 60     996     860 367-49        1 x M750 C  C/TP  C  C  C   900 49 001P  900 49 002P
                                                              1 x M900 C/TP C/TP C  C  C  901 49 001P  901 49 002P
         Upright tube   30 x 60     1359    860 024-49
                                                              2 x M500 C  C               902 49 001P  902 49 002P
         Upright tube   30 x 60     1582    860 025-49
         Horizontal tube  M500              860 819-49        2 x M750        C/TP C  C   903 49 001P  903 49 002P
         Horizontal tube  M750              847 402-49        2 x M900            C/TP C  904 49 001P  904 49 002P
                                                              3 x M500        C   C   C   905 49 001P  905 49 002P
         Horizontal tube  M900              840 104-49
                                                              4 x M500                C   906 49 001P  906 49 002P
         Horizontal tube  M1000             854 656-49
         Horizontal tube  M1200             854 655-49        h = module's height measured from Concept bench's top surface.
         Horizontal tube  M1350             850 914-49        Upright tube modules are available also with 996 mm uprights (h=714 mm).
                                                              Item codes: 90x49003P.
         Horizontal tube  M1500             854 654-49
                                                              Load capacity 100 kg / module spacing.
         Horizontal tube  M1800             854 657-49
                                                              Upright tube modules include 5 pcs of cable clips for easy cable management.
         Corner bracket pair                848 336-49
         Straight bracket                   851 827-49
