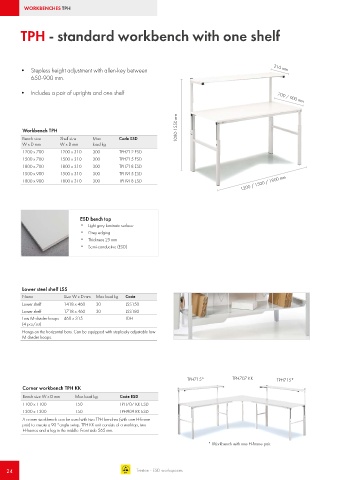

P. 24

WORKBENCHES TPH



        TPH - standard workbench with one shelf







        •  Stepless height adjustment with allen-key between                                     310 mm
            650-900 mm.


        •  Includes a pair of uprights and one shelf                                               700 / 900 mm



                                                               1080-1550 mm

         Workbench TPH
         Bench size   Shelf size  Max      Code ESD
         W x D mm     W x D mm    load kg
         1200 x 700   1200 x 310  300      TPH712 ESD
         1500 x 700   1500 x 310  300      TPH715 ESD
         1800 x 700   1800 x 310  300      TPH718 ESD
         1500 x 900   1500 x 310  300      TPH915 ESD
                                                                                      1200 / 1500 / 1800 mm
         1800 x 900   1800 x 310  300      TPH918 ESD





                             ESD bench top
                             •  Light grey laminate surface
                             •  Grey edging
                             •  Thickness 25 mm
                             •  Semi-conductive (ESD)







         Lower steel shelf LSS
         Name          Size W x D mm  Max load kg  Code
         Lower shelf   1418 x 460  30        LSS150
         Lower shelf   1718 x 460  30        LSS180
         Low M-divider hoops  460 x 315      LDH
         (4 pcs/set)
         Hangs on the horizontal bars. Can be equipped with steplessly adjustable low
         M-divider hoops.







                                                                   TPH715*         TPH707 KK      TPH715*
         Corner workbench TPH KK
         Bench size W x D mm  Max load kg   Code ESD
         1100 x 1100       150             TPH707 KK ESD
         1300 x 1300       150             TPH909 KK ESD
         A corner workbench can be used with two TPH benches (with one H-frame
         pair) to create a 90 °angle setup. TPH KK unit consists of a worktop, two
         H-frames and a leg in the middle. Front side 565 mm.

                                                                          * Workbench with one H-frame pair.
