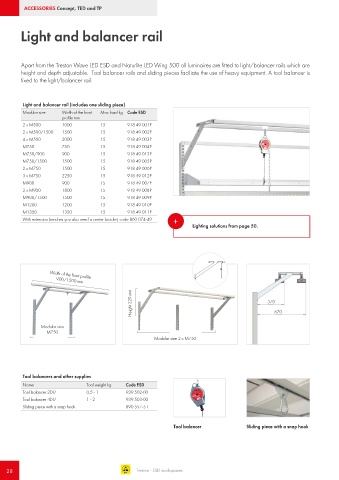

Page 28 - Treston workspaces

ACCESSORIES Concept, TED and TP

Light and balancer rail

Apart from the Treston Wave LED ESD and Naturlite LED Wing 500 all luminaires are fitted to light/balancer rails which are
height and depth adjustable. Tool balancer rails and sliding pieces faciliate the use of heavy equipment. A tool balancer is
fixed to the light/balancer rail.

Light and balancer rail (includes one sliding piece)
Modular size Width of the front Max load kg Code ESD
profile mm
2 x M500 1000 15 918 49 001P
2 x M500/1500 1500 15 918 49 002P
4 x M500 2000 15 918 49 003P
M750 750 15 918 49 004P
M750/900 900 15 918 49 013P
M750/1500 1500 15 918 49 005P
2 x M750 1500 15 918 49 006P
3 x M750 2250 15 918 49 012P
M900 900 15 918 49 007P
2 x M900 1800 15 918 49 008P
M900/1500 1500 15 918 49 009P
M1200 1200 15 918 49 010P
M1350 1350 15 918 49 011P
+
With extension benches you also need a center bracket, code 860 074-49
Lighting solutions from page 50.

    


Width of the front profile
900/1500 mm

Height 329 mm                   370 670




 

 


Modular size
M750
Modular size 2 x M750

Tool balancers and other supplies
Name Tool weight kg Code ESD
Tool balancer 2DU 0,5 - 1 939 502-00
Tool balancer 4DU 1 - 2 939 503-00
Sliding piece with a snap hook 890 557-51

Tool balancer Sliding piece with a snap hook
