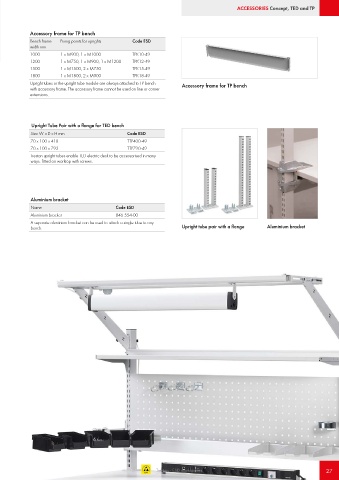

P. 27

ACCESSORIES Concept, TED and TP




            Accessory frame for TP bench
            Bench frame  Fixing points for uprights  Code ESD
            width mm
            1000      1 x M900, 1 x M1000       TPK10-49
            1200      1 x M750, 1 x M900, 1 x M1200  TPK12-49
            1500      1 x M1500, 2 x M750       TPK15-49
            1800      1 x M1800, 2 x M900       TPK18-49
            Upright tubes or the upright tube module are always attached to TP bench   Accessory frame for TP bench
            with accessory frame. The accessory frame cannot be used on line or corner
            extensions.





            Upright Tube Pair with a flange for TED bench
            Size W x D x H mm                 Code ESD
            70 x 100 x 418                    TTP400-49
            70 x 100 x 793                    TTP790-49
            Treston upright tubes enable TED electric desk to be accessorised in many
            ways. Fitted on worktop with screws.






            Aluminium bracket
            Name                          Code ESD
            Aluminium bracket             846 554-00
            A separate aluminium bracket can be used to attach a single tube to any
            bench.                                               Upright tube pair with a flange   Aluminium bracket



















































                                                        Treston - ESD workspaces                                    27
