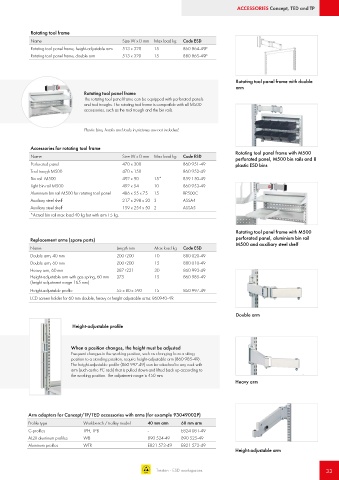

ACCESSORIES Concept, TED and TP



            Rotating tool frame
            Name                            Size W x D mm  Max load kg  Code ESD
            Rotating tool panel frame, height-adjustable arm  513 x 320  15  860 864-49P
            Rotating tool panel frame, double arm  513 x 320  15  880 865-49P



                                                                                    Rotating tool panel frame with double
                                                                                    arm
                               Rotating tool panel frame
                               The rotating tool panel frame can be equipped with perforated panels
                               and tool troughs. The rotating tool frame is compatible with all M500
                               accessories, such as the tool trough and the bin rails.


                               Plastic bins, hooks and tools in pictures are not included.


            Accessories for rotating tool frame
                                                                                    Rotating tool panel frame with M500
            Name                            Size W x D mm  Max load kg  Code ESD
                                                                                    perforated panel, M500 bin rails and 8
            Perforated panel                470 x 300            860 951-49         plastic ESD bins
            Tool trough M500                470 x 150            860 952-49
            Bin rail  M500                  492 x 90   15*       859 150-49
            Light bin rail M500             492 x 54   10        860 953-49
            Aluminium bin rail M500 for rotating tool panel  486 x 55 x 75  15  BP500C
            Auxiliary steel shelf           217 x 298 x 20 3     ASSA4
            Auxiliary steel shelf           159 x 254 x 50 2     ASSA5
            *Actual bin rail max load 40 kg but with arm 15 kg.


                                                                                    Rotating tool panel frame with M500
            Replacement arms (spare parts)                                          perforated panel, aluminium bin rail
                                                                                    M500 and auxiliary steel shelf
            Name                          Length mm    Max load kg  Code ESD
            Double arm, 40 mm             200+200      10        880 020-49
            Double arm, 60 mm             200+200      15        880 010-49
            Heavy arm, 60 mm              287+221      30        860 993-49
            Height-adjustable arm with gas spring, 60 mm   375  15  860 985-49
            (height adjustment range 165 mm)
            Height-adjustable profile     55 x 80 x 590  15      860 997-49
            LCD screen holder for 60 mm double, heavy or height adjustable arms: 860940-49.

                                                                                    Double arm

                          Height-adjustable profile



                          When a position changes, the height must be adjusted
                          Frequent changes in the working position, such as changing from a sitting
                          position to a standing position, require height-adjustable arm (860 985-49).
                          The height-adjustable profile (860 997-49) can be attached to any rack with
                          arm (such as the PC rack) that is pulled down and lifted back up according to
                          the working position. The adjustment range is 450 mm.
                                                                                    Heavy arm





           Arm adapters for Concept/TP/TED accessories with arms (for example 93049002P)
           Profile type       Workbench / trolley model  40 mm arm  60 mm arm
           C-profiles         TPH, TPB               -           E824 081-49
           AL2X aluminum profiles   WB               890 524-49  890 525-49
           Aluminum profiles  WTR                    E821 573-49  E821 572-49
                                                                                    Height-adjustable arm
