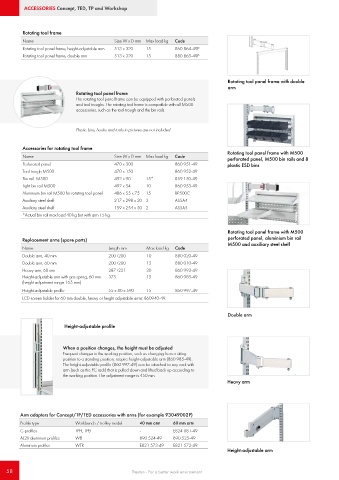

ACCESSORIES Concept, TED, TP and Workshop

Rotating tool frame
Name Size W x D mm Max load kg Code
Rotating tool panel frame, height-adjustable arm 513 x 320 15 860 864-49P
Rotating tool panel frame, double arm 513 x 320 15 880 865-49P

Rotating tool panel frame with double
arm
Rotating tool panel frame
The rotating tool panel frame can be equipped with perforated panels
and tool troughs. The rotating tool frame is compatible with all M500
accessories, such as the tool trough and the bin rails.

Plastic bins, hooks and tools in pictures are not included.

Accessories for rotating tool frame
Rotating tool panel frame with M500
Name Size W x D mm Max load kg Code
perforated panel, M500 bin rails and 8
Perforated panel 470 x 300 860 951-49 plastic ESD bins
Tool trough M500 470 x 150 860 952-49
Bin rail M500 492 x 90 15* 859 150-49
Light bin rail M500 492 x 54 10 860 953-49
Aluminium bin rail M500 for rotating tool panel 486 x 55 x 75 15 BP500C
Auxiliary steel shelf 217 x 298 x 20 3 ASSA4
Auxiliary steel shelf 159 x 254 x 50 2 ASSA5
*Actual bin rail max load 40 kg but with arm 15 kg.

Rotating tool panel frame with M500
Replacement arms (spare parts) perforated panel, aluminium bin rail
M500 and auxiliary steel shelf
Name Length mm Max load kg Code
Double arm, 40 mm 200+200 10 880 020-49
Double arm, 60 mm 200+200 15 880 010-49
Heavy arm, 60 mm 287+221 30 860 993-49
Height-adjustable arm with gas spring, 60 mm 375 15 860 985-49
(height adjustment range 165 mm)
Height-adjustable profile 55 x 80 x 590 15 860 997-49
LCD screen holder for 60 mm double, heavy or height adjustable arms: 860940-49.

Double arm

Height-adjustable profile

When a position changes, the height must be adjusted
Frequent changes in the working position, such as changing from a sitting
position to a standing position, require height-adjustable arm (860 985-49).
The height-adjustable profile (860 997-49) can be attached to any rack with
arm (such as the PC rack) that is pulled down and lifted back up according to
the working position. The adjustment range is 450 mm.
Heavy arm

Arm adapters for Concept/TP/TED accessories with arms (for example 93049002P)
Profile type Workbench / trolley model 40 mm arm 60 mm arm
C-profiles TPH, TPB - E824 081-49
AL2X aluminum profiles WB 890 524-49 890 525-49
Aluminum profiles WTR E821 573-49 E821 572-49
Height-adjustable arm
