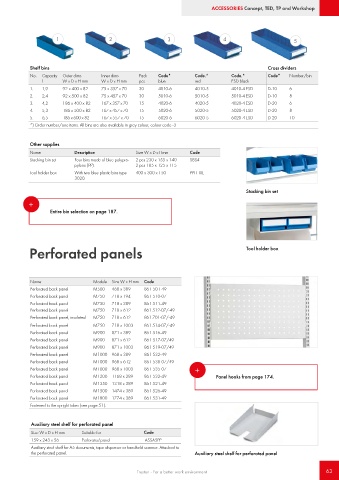

Page 63 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

1 2 3 4 5

Shelf bins Cross dividers
No. Capacity Outer dims Inner dims Pack Code* Code.* Code.* Code* Number/bin
l W x D x H mm W x D x H mm pcs blue red ESD black
1. 1,9 92 x 400 x 82 75 x 357 x 70 30 4010-6 4010-5 4010-4 ESD D-10 6
2. 2,4 92 x 500 x 82 75 x 457 x 70 30 5010-6 5010-5 5010-4 ESD D-10 8
3. 4,2 186 x 400 x 82 167 x 357 x 70 15 4020-6 4020-5 4020-4 ESD D-20 6
4. 5,3 186 x 500 x 82 167 x 457 x 70 15 5020-6 5020-5 5020-4 ESD D-20 8
5. 6,5 186 x 600 x 82 167 x 557 x 70 15 6020-6 6020-5 6020-4 ESD D-20 10
*) Order number/one items. All bins are also available in grey colour, colour code -3

Other supplies
Name Description Size W x D x Hmm Code
Stacking bin set Four bins made of blue polypro- 2 pcs 230 x 155 x 140 SBS4
pylene (PP). 2 pcs 185 x 125 x 115
Tool holder box With two blue plastic bins type 400 x 300 x 150 PPH TXL
3020.

Stacking bin set

+
Entire bin selection on page 187.

Perforated panels Tool holder box

Name Module Size W x H mm Code
Perforated back panel M500 468 x 389 861 501-49
Perforated back panel M750 718 x 194 861 510-07
Perforated back panel M750 718 x 389 861 511-49
Perforated back panel M750 718 x 612 861 512-07/-49
Perforated back panel, insulated M750 718 x 612 861 701-07/-49
Perforated back panel M750 718 x 1003 861 514-07/-49
Perforated back panel M900 871 x 389 861 516-49
Perforated back panel M900 871 x 612 861 517-07/49
Perforated back panel M900 871 x 1003 861 519-07/49
Perforated back panel M1000 968 x 389 861 532-49
Perforated back panel M1000 968 x 612 861 538-07/49
Perforated back panel M1000 968 x 1003 861 535-07 +
Perforated back panel M1200 1168 x 389 861 533-49 Panel hooks from page 174.
Perforated back panel M1350 1318 x 389 861 521-49
Perforated back panel M1500 1474 x 389 861 526-49
Perforated back panel M1800 1774 x 389 861 531-49
Fastened to the upright tubes (see page 51).

Auxiliary steel shelf for perforated panel
Size W x D x H mm Suitable for Code
159 x 243 x 56 Perforated panel ASSA5PP
Auxiliary steel shelf for A5 documents, tape dispenser or handheld scanner. Attached to
the perforated panel. Auxiliary steel shelf for perforated panel

Treston - For a better work environment 63
