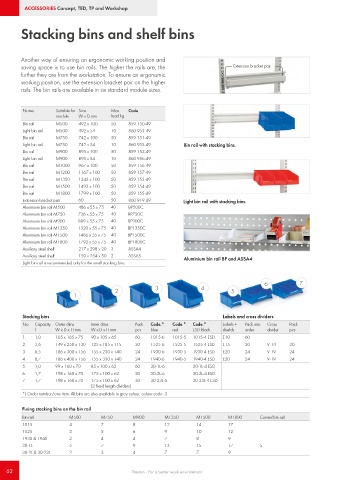

Page 62 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

Stacking bins and shelf bins

Another way of ensuring an ergonomic working position and
saving space is to use bin rails. The higher the rails are, the Extension bracket pair
further they are from the workstation. To ensure an ergonomic
working position, use the extension bracket pair on the higher
rails. The bin rails are available in six standard module sizes.

Name Suitable for Size Max Code
module W x D mm load kg
Bin rail M500 492 x 100 50 859 150-49
Light bin rail M500 492 x 54 10 860 953-49
Bin rail M750 742 x 100 50 859 151-49
Light bin rail M750 742 x 54 10 860 955-49 Bin rail with stacking bins.
Bin rail M900 895 x 100 50 859 152-49
Light bin rail M900 895 x 54 10 860 956-49
Bin rail M1000 967 x 100 50 859 156-49
Bin rail M1200 1167 x 100 50 859 157-49
Bin rail M1350 1343 x 100 50 859 153-49
Bin rail M1500 1493 x 100 50 859 154-49
Bin rail M1800 1799 x 100 50 859 155-49
Extension bracket pair 60 50 860 919-49 Light bin rail with stacking bins.
Aluminium bin rail M500 486 x 55 x 75 40 BP500C
Aluminium bin rail M750 736 x 55 x 75 40 BP750C
Aluminium bin rail M900 889 x 55 x 75 40 BP900C
Aluminium bin rail M1350 1320 x 55 x 75 40 BP1350C
Aluminium bin rail M1500 1486 x 55 x 75 40 BP1500C
Aluminium bin rail M1800 1792 x 55 x 75 40 BP1800C
Auxiliary steel shelf 217 x 298 x 20 3 ASSA4
Auxiliary steel shelf 159 x 254 x 50 2 ASSA5 Aluminium bin rail BP and ASSA4
Light bin rail is recommended only for the small stacking bins.

6 7
2 3 4 5
1

Stacking bins Labels and cross dividers
No. Capacity Outer dims Inner dims Pack Code.* Code.* Code.* Labels + Pack min. Cross Pack
l W x D x H mm W x D x H mm pcs blue red ESD black shields order divider pcs
1. 1,0 105 x 165 x 75 90 x 105 x 65 60 1015-6 1015-5 1015-4 ESD E10 60
2. 3,6 149 x 250 x 130 125 x 185 x 115 30 1525-6 1525-5 1525-4 ESD E15 30 V-14 30
3. 6,5 186 x 300 x 156 155 x 230 x 140 24 1930-6 1930-5 1930-4 ESD E20 24 V-19 24
4. 8,7 186 x 400 x 156 155 x 330 x 140 24 1940-6 1940-5 1940-4 ESD E20 24 V-19 24
5. 1,0 99 x 160 x 70 85 x 100 x 62 60 30-1L-6 30-1L-4 ESD
6. 1,7 198 x 160 x 70 175 x 100 x 62 30 30-2L-6 30-2L-4 ESD
7. 1,7 198 x 160 x 70 175 x 100 x 62 30 30-23L-6 30-23L-4 ESD
(2 fixed length dividers)
*) Order number/one item. All bins are also available in grey colour, colour code -3

Fixing stacking bins on the bin rail
Bin rail M500 M750 M900 M1350 M1500 M1800 Curved bin rail
1015 4 7 8 12 14 17
1525 3 5 6 9 10 12
1930 & 1940 2 4 4 7 8 9
30-1L 5 7 9 13 15 17 5
30-2L & 30-23L 2 3 4 7 7 9
