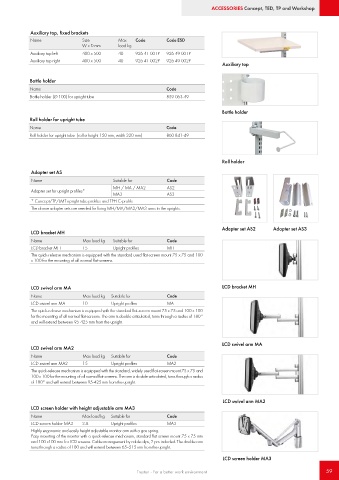

Page 59 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

Auxiliary top, fixed brackets
Name Size Max Code Code ESD
W x D mm load kg
Auxiliary top left 400 x 500 40 926 41 001P 926 49 001P
Auxiliary top right 400 x 500 40 926 41 002P 926 49 002P
Auxiliary top

Bottle holder
Name Code
Bottle holder (Ø 100) for upright tube 859 063-49

Bottle holder
Roll holder for upright tube
Name Code
Roll holder for upright tube (roll ø height 150 mm, width 320 mm) 860 841-49

Roll holder
Adapter set AS
Name Suitable for Code
MH / MA / MA2 AS2
Adapter set for upright profiles*
MA3 AS3
* Concept/TP/LMT upright tube profiles and TPH C-profile
The above adapter sets are needed for fixing MH/MA/MA2/MA3 arms to the uprights.

Adapter set AS2 Adapter set AS3
LCD bracket MH
Name Max load kg Suitable for Code
LCD bracket MH 15 Upright profiles MH
The quick-release mechanism is equipped with the standard used flat-screen mount 75 x 75 and 100
x 100 for the mounting of all normal flat-screens.

LCD swivel arm MA LCD bracket MH
Name Max load kg Suitable for Code
LCD swivel arm MA 10 Upright profiles MA
The quick-release mechanism is equipped with the standard flat-screen mount 75 x 75 and 100 x 100
for the mounting of all normal flat-screens. The arm is double articulated, turns through a radius of 180°
and will extend between 95-425 mm from the upright.

LCD swivel arm MA
LCD swivel arm MA2
Name Max load kg Suitable for Code
LCD swivel arm MA2 15 Upright profiles MA2
The quick-release mechanism is equipped with the standard, widely used flat-screen mount 75 x 75 and
100 x 100 for the mounting of all normal flat-screens. The arm is double articulated, turns through a radius
of 180° and will extend between 95-425 mm from the upright.

LCD swivel arm MA2
LCD screen holder with height adjustable arm MA3
Name Max load kg Suitable for Code
LCD screen holder MA3 3-8 Upright profiles MA3
Highly ergonomic and easily height adjustable monitor arm with a gas spring.
Easy mounting of the monitor with a quick-release mechanism, standard flat screen mount 75 x 75 mm
and 100 x100 mm for LCD screens. Cable management by cable clips, 2 pcs included. The double arm
turns through a radius of 180 and will extend between 65–515 mm from the upright.

LCD screen holder MA3

Treston - For a better work environment 59
