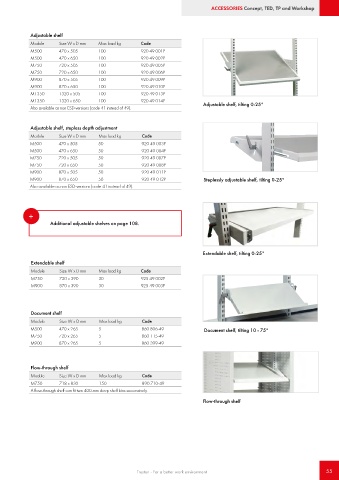

Page 55 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

Adjustable shelf
Module Size W x D mm Max load kg Code
M500 470 x 505 100 920 49 001P
M500 470 x 650 100 920 49 002P
M750 720 x 505 100 920 49 005P
M750 720 x 650 100 920 49 006P
M900 870 x 505 100 920 49 009P
M900 870 x 650 100 920 49 010P
M1350 1320 x 505 100 920 49 013P
M1350 1320 x 650 100 920 49 014P
Adjustable shelf, tilting 0-25°
Also available as non ESD-versions (code 41 instead of 49).

Adjustable shelf, stepless depth adjustment
Module Size W x D mm Max load kg Code
M500 470 x 505 50 920 49 003P
M500 470 x 650 50 920 49 004P
M750 720 x 505 50 920 49 007P
M750 720 x 650 50 920 49 008P
M900 870 x 505 50 920 49 011P
M900 870 x 650 50 920 49 012P Steplessly adjustable shelf, tilting 0-25°
Also available as non ESD-versions (code 41 instead of 49).

+
Additional adjustable shelves on page 108.

Extendable shelf, tilting 0-25°
Extendable shelf
Module Size W x D mm Max load kg Code
M750 720 x 390 30 925 49 002P
M900 870 x 390 30 925 49 003P

Document shelf
Module Size W x D mm Max load kg Code
M500 470 x 265 5 860 806-49 Document shelf, tilting 10 - 75°
M750 720 x 265 5 860 115-49
M900 870 x 265 5 860 399-49

Flow-through shelf
Module Size W x D mm Max load kg Code
M750 718 x 830 150 890 710-49
A flow-through shelf can fit two 400-mm deep shelf bins successively.
Flow-through shelf
