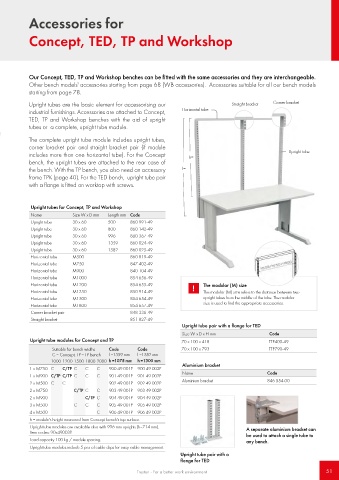

Page 51 - Treston main catalogue 2021

Accessories for

Concept, TED, TP and Workshop

Our Concept, TED, TP and Workshop benches can be fitted with the same accessories and they are interchangeable.
Other bench models' accessories starting from page 68 (WB accessories). Accessories suitable for all our bench models
starting from page 78.

Upright tubes are the basic element for accessorising our Straight bracket Corner bracket
industrial furnishings. Accessories are attached to Concept, Horizontal tube
TED, TP and Workshop benches with the aid of upright
tubes or a complete, upright tube module.

The complete upright tube module includes upright tubes,
corner bracket pair and straight bracket pair (if module
includes more than one horizontal tube). For the Concept h= Upright tube
bench, the upright tubes are attached to the rear case of
the bench. With the TP bench, you also need an accessory l=
frame TPK (page 40). For the TED bench, upright tube pair
with a flange is fitted on worktop with screws.

Upright tubes for Concept, TP and Workshop
Name Size W x D mm Length mm Code
Upright tube 30 x 60 500 860 991-49
Upright tube 30 x 60 800 860 142-49
Upright tube 30 x 60 996 860 367-49
Upright tube 30 x 60 1359 860 024-49
Upright tube 30 x 60 1582 860 025-49
Horizontal tube M500 860 819-49
Horizontal tube M750 847 402-49
Horizontal tube M900 840 104-49
Horizontal tube M1000 854 656-49
Horizontal tube M1200 854 655-49 ! The modular (M) size
Horizontal tube M1350 850 914-49 The modular (M) size refers to the distance between two
Horizontal tube M1500 854 654-49 upright tubes from the middle of the tube. The modular
size is used to find the appropriate accessories.
Horizontal tube M1800 854 657-49
Corner bracket pair 848 336-49
Straight bracket 851 827-49
Upright tube pair with a flange for TED
Size W x D x H mm Code
Upright tube modules for Concept and TP 70 x 100 x 418 TTP400-49
Suitable for bench widths Code Code 70 x 100 x 793 TTP790-49
C = Concept, TP = TP bench l =1359 mm l =1582 mm
1000 1200 1500 1800 2000 h =1075 mm h =1300 mm
Aluminium bracket
1 x M750 C C/TP C C C 900 49 001P 900 49 002P
Name Code
1 x M900 C/TP C/TP C C C 901 49 001P 901 49 002P
Aluminium bracket 846 554-00
2 x M500 C C 902 49 001P 902 49 002P
2 x M750 C/TP C C 903 49 001P 903 49 002P
2 x M900 C/TP C 904 49 001P 904 49 002P
3 x M500 C C C 905 49 001P 905 49 002P
4 x M500 C 906 49 001P 906 49 002P
h = module's height measured from Concept bench's top surface.
Upright tube modules are available also with 996 mm uprights (h=714 mm). A separate aluminium bracket can
Item codes: 90x49003P. be used to attach a single tube to
Load capacity 100 kg / module spacing. any bench.
Upright tube modules include 5 pcs of cable clips for easy cable management.
Upright tube pair with a
flange for TED
