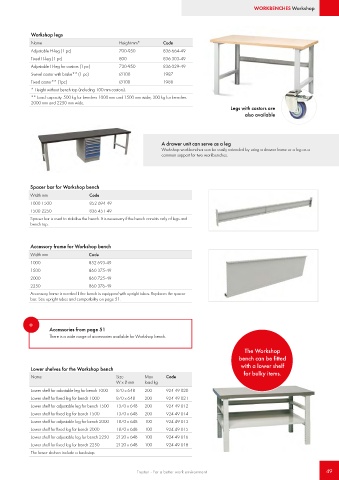

Page 49 - Treston main catalogue 2021

WORKBENCHES Workshop

Workshop legs
Name Height mm* Code
Adjustable H-leg (1 pc) 700-950 836 664-49
Fixed H-leg (1 pc) 800 836 303-49
Adjustable H-leg for castors (1 pc) 730-950 836 029-49
Swivel castor with brake** (1 pc) Ø100 1987
Fixed castor** (1pc) Ø100 1988
* Height without bench top (including 100 mm castors).
** Load capacity: 500 kg for benches 1000 mm and 1500 mm wide, 300 kg for benches
2000 mm and 2250 mm wide.
Legs with castors are
also available

A drawer unit can serve as a leg
Workshop workbenches can be easily extended by using a drawer frame or a leg as a
common support for two workbenches.

Spacer bar for Workshop bench
Width mm Code
1000-1500 852 694-49
1500-2250 836 451-49
Spacer bar is used to stabilise the bench. It is necessary if the bench consists only of legs and
bench top.

Accessory frame for Workshop bench
Width mm Code
1000 852 693-49
1500 860 375-49
2000 860 725-49
2250 860 376-49
Accessory frame is needed if the bench is equipped with upright tubes. Replaces the spacer
bar. See upright tubes and compatibility on page 51.

+
Accessories from page 51
There is a wide range of accessories available for Workshop bench.

The Workshop
bench can be fitted
with a lower shelf
Lower shelves for the Workshop bench
Name Size Max Code for bulky items.
W x D mm load kg
Lower shelf for adustable leg for bench 1000 870 x 648 200 924 49 020
Lower shelf for fixed leg for bench 1000 870 x 648 200 924 49 021
Lower shelf for adjustable leg for bench 1500 1370 x 648 200 924 49 012
Lower shelf for fixed leg for bench 1500 1370 x 648 200 924 49 014
Lower shelf for adjustable leg for bench 2000 1870 x 648 100 924 49 013
Lower shelf for fixed leg for bench 2000 1870 x 648 100 924 49 015
Lower shelf for adjustable leg for bench 2250 2120 x 648 100 924 49 016
Lower shelf for fixed leg for bench 2250 2120 x 648 100 924 49 018
The lower shelves include a backstop.
