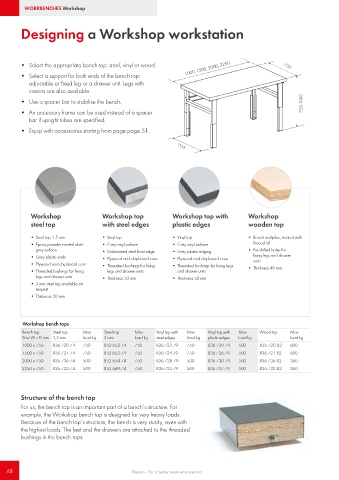

Page 48 - Treston main catalogue 2021

WORKBENCHES Workshop

Designing a Workshop workstation

• Select the appropriate bench top: steel, vinyl or wood. 1000, 1500, 2000, 2250 750
• Select a support for both ends of the bench top:
adjustable or fixed leg or a drawer unit. Legs with
castors are also available

• Use a spacer bar to stabilise the bench. 750-1000
• An accessory frame can be used instead of a spacer
bar if upright tubes are specified.
• Equip with accessories starting from page page 51.

733

Workshop Workshop top Workshop top with Workshop
steel top with steel edges plastic edges wooden top

• Steel top 1.5 mm • Vinyl top • Vinyl top • Beech multiplex, treated with
• Epoxy powder coated dark- • Grey vinyl surface • Grey vinyl surface linseed oil
grey surface • Galvanized steel front edge • Grey plastic edging • Pre-drilled holes for
• Grey plastic ends • Plywood and chipboard core • Plywood and chipboard core fixing legs and drawer
• Plywood and chipboard core • Threaded bushings for fixing • Threaded bushings for fixing legs units
• Threaded bushings for fixing legs and drawer units and drawer units • Thickness 40 mm
legs and drawer units • Thickness 50 mm • Thickness 50 mm
• 3 mm steel top available on
request
• Thickness 50 mm

Workshop bench tops
Bench top Steel top Max Steel top Max Vinyl top with Max Vinyl top with Max Wood top Max
Size W x D mm 1,5 mm load kg 3 mm load kg steel edges load kg plastic edges load kg load kg
1000 x 750 836 720-74 750 852 652-74 750 836 723-79 750 836 729-79 500 836 720-82 600
1500 x 750 836 721-74 750 852 653-74 750 836 724-79 750 836 726-79 500 836 721-82 600
2000 x 750 836 736-74 500 852 654-74 750 836 728-79 500 836 730-79 500 836 736-82 360
2250 x 750 836 722-74 500 852 649-74 750 836 725-79 500 836 727-79 500 836 722-82 360

Structure of the bench top
For us, the bench top is an important part of a bench’s structure. For
example, the Workshop bench top is designed for very heavy loads.
Because of the bench top’s structure, the bench is very sturdy, even with
the highest loads. The feet and the drawers are attached to the threaded
bushings in the bench tops.
