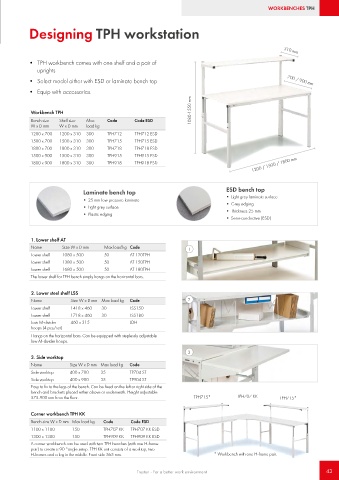

Page 43 - Treston main catalogue 2021

WORKBENCHES TPH

Designing TPH workstation

310 mm
• TPH workbench comes with one shelf and a pair of
uprights
• Select model either with ESD or laminate bench top 700 / 900 mm
• Equip with accessories.
1080-1550 mm

Workbench TPH
Bench size Shelf size Max Code Code ESD
W x D mm W x D mm load kg
1200 x 700 1200 x 310 300 TPH712 TPH712 ESD
1500 x 700 1500 x 310 300 TPH715 TPH715 ESD
1800 x 700 1800 x 310 300 TPH718 TPH718 ESD
1500 x 900 1500 x 310 300 TPH915 TPH915 ESD
1200 / 1500 / 1800 mm
1800 x 900 1800 x 310 300 TPH918 TPH918 ESD

Laminate bench top ESD bench top
• 25 mm low pressure laminate • Light grey laminate surface
• Grey edging
• Light grey surface • Thickness 25 mm
• Plastic edging
• Semi-conductive (ESD)

1. Lower shelf AT
Name Size W x D mm Max load kg Code 1
Lower shelf 1080 x 500 50 AT 120TPH
Lower shelf 1380 x 500 50 AT 150TPH
Lower shelf 1680 x 500 50 AT 180TPH
The lower shelf for TPH bench simply hangs on the horizontal bars.

2. Lower steel shelf LSS
Name Size W x D mm Max load kg Code 2
Lower shelf 1418 x 460 30 LSS150
Lower shelf 1718 x 460 30 LSS180
Low M-divider 460 x 315 LDH
hoops (4 pcs/set)
Hangs on the horizontal bars. Can be equipped with steplessly adjustable
low M-divider hoops.

3
3. Side worktop
Name Size W x D mm Max load kg Code
Side worktop 400 x 700 35 TP704 ST
Side worktop 400 x 900 35 TP904 ST
Easy to fix to the legs of the bench. Can be fixed on the left or right side of the
bench and brackets placed either above or underneath. Height adjustable
575-900 mm from the floor. TPH715* TPH707 KK TPH715*

Corner workbench TPH KK
Bench size W x D mm Max load kg Code Code ESD
1100 x 1100 150 TPH707 KK TPH707 KK ESD
1300 x 1300 150 TPH909 KK TPH909 KK ESD
A corner workbench can be used with two TPH benches (with one H-frame
pair) to create a 90 °angle setup. TPH KK unit consists of a worktop, two
H-frames and a leg in the middle. Front side 565 mm. * Workbench with one H-frame pair.

Treston - For a better work environment 43
