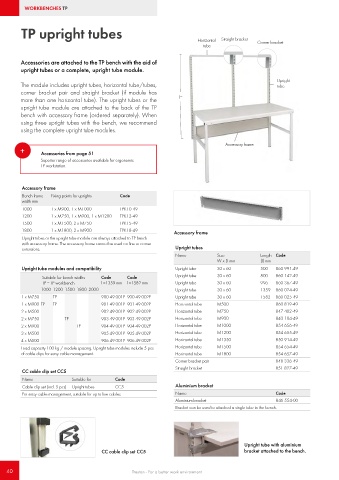

Page 40 - Treston main catalogue 2021

WORKBENCHES TP

TP upright tubes

Horizontal Straight bracket Corner bracket
tube

Accessories are attached to the TP bench with the aid of
upright tubes or a complete, upright tube module.

Upright
The module includes upright tubes, horizontal tube/tubes, tube
corner bracket pair and straight bracket (if module has
more than one horizontal tube). The upright tubes or the l=
upright tube module are attached to the back of the TP
bench with accessory frame (ordered separately). When
using three upright tubes with the bench, we recommend
using the complete upright tube modules.

Accessory frame
+ Accessories from page 51
Superior range of accessories available for ergonomic
TP workstation.

Accessory frame
Bench frame Fixing points for uprights Code
width mm
1000 1 x M900, 1 x M1000 TPK10-49
1200 1 x M750, 1 x M900, 1 x M1200 TPK12-49
1500 1 x M1500, 2 x M750 TPK15-49
1800 1 x M1800, 2 x M900 TPK18-49
Accessory frame
Upright tubes or the upright tube module are always attached to TP bench
with accessory frame. The accessory frame cannot be used on line or corner
extensions. Upright tubes
Name Size Length Code
W x D mm (l) mm
Upright tube modules and compatibility Upright tube 30 x 60 500 860 991-49
Suitable for bench widths Code Code Upright tube 30 x 60 800 860 142-49
TP = TP workbench l =1359 mm l =1582 mm Upright tube 30 x 60 996 860 367-49
1000 1200 1500 1800 2000 Upright tube 30 x 60 1359 860 024-49
1 x M750 TP 900 49 001P 900 49 002P Upright tube 30 x 60 1582 860 025-49
1 x M900 TP TP 901 49 001P 901 49 002P Horizontal tube M500 860 819-49
2 x M500 902 49 001P 902 49 002P Horizontal tube M750 847 402-49
2 x M750 TP 903 49 001P 903 49 002P Horizontal tube M900 840 104-49
2 x M900 TP 904 49 001P 904 49 002P Horizontal tube M1000 854 656-49
3 x M500 905 49 001P 905 49 002P Horizontal tube M1200 854 655-49
4 x M500 906 49 001P 906 49 002P Horizontal tube M1350 850 914-49
Load capacity 100 kg / module spacing. Upright tube modules include 5 pcs Horizontal tube M1500 854 654-49
of cable clips for easy cable management. Horizontal tube M1800 854 657-49
Corner bracket pair 848 336-49
Straight bracket 851 827-49
CC cable clip set CC5
Name Suitable for Code
Cable clip set (incl. 5 pcs) Upright tubes CC5 Aluminium bracket
For easy cable management, suitable for up to five cables. Name Code
Aluminium bracket 846 554-00
Bracket can be used to attached a single tube to the bench.

Upright tube with aluminium
CC cable clip set CC5 bracket attached to the bench.

40 Treston - For a better work environment
