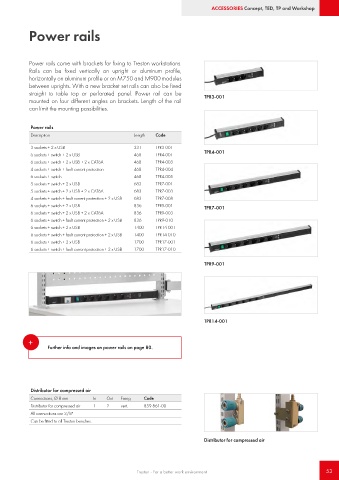

Page 53 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

Power rails

Power rails come with brackets for fixing to Treston workstations.
Rails can be fixed vertically on upright or aluminum profile,
horizontally on aluminum profile or on M750 and M900 modules
between uprights. With a new bracket set rails can also be fixed
straight to table top or perforated panel. Power rail can be TPR3-001
mounted on four different angles on brackets. Length of the rail
can limit the mounting possibilities.

Power rails
Description Length Code

3 sockets + 2 x USB 331 TPR3-001
TPR4-001
6 sockets + switch + 2 x USB 468 TPR4-001
6 sockets + switch + 2 x USB + 2 x CAT6A 468 TPR4-003
4 sockets + switch + fault current protection 468 TPR4-004
6 sockets + switch 468 TPR4-005
5 sockets + switch + 2 x USB 683 TPR7-001
5 sockets + switch + 2 x USB + 2 x CAT6A 683 TPR7-003
4 sockets + switch + fault current protection + 2 x USB 683 TPR7-008
6 sockets + switch + 2 x USB 836 TPR9-001 TPR7-001
6 sockets + switch + 2 x USB + 2 x CAT6A 836 TPR9-003
6 sockets + switch + fault current protection + 2 x USB 836 TPR9-010
6 sockets + switch + 2 x USB 1400 TPR14-001
6 sockets + switch + fault current protection + 2 x USB 1400 TPR14-010
6 sockets + switch + 2 x USB 1700 TPR17-001
6 sockets + switch + fault current protection + 2 x USB 1700 TPR17-010

TPR9-001

TPR14-001

+
Further info and images on power rails on page 80.

Distributor for compressed air
Connections, Ø 8 mm In Out Fixing Code
Distributor for compressed air 1 2 vert. 859 861-00
All connections are 3/8"
Can be fitted to all Treston benches.

Distributor for compressed air
