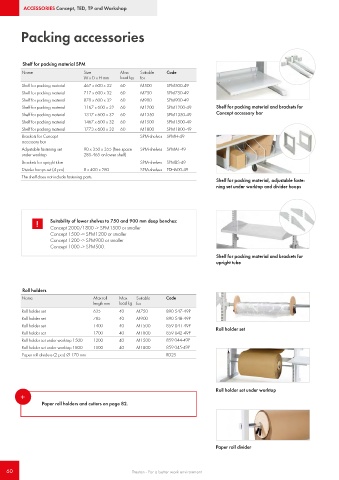

Page 60 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

Packing accessories

Shelf for packing material SPM
Name Size Max Suitable Code
W x D x H mm load kg for
Shelf for packing material 467 x 600 x 32 60 M500 SPM500-49
Shelf for packing material 717 x 600 x 32 60 M750 SPM750-49
Shelf for packing material 870 x 600 x 32 60 M900 SPM900-49
Shelf for packing material 1167 x 600 x 32 60 M1200 SPM1200-49 Shelf for packing material and brackets for
Shelf for packing material 1317 x 600 x 32 60 M1350 SPM1350-49 Concept accessory bar
Shelf for packing material 1467 x 600 x 32 60 M1500 SPM1500-49
Shelf for packing material 1773 x 600 x 32 60 M1800 SPM1800-49
Brackets for Concept SPM-shelves SPMH-49
accessory bar
Adjustable fastening set 90 x 350 x 355 (free space SPM-shelves SPMAF-49
under worktop 285-465 on lower shelf)
Brackets for upright tube SPM-shelves SPMBS-49
Divider hoops set (4 pcs) 8 x 400 x 280 SPM-shelves PDH600-49
The shelf does not include fastening parts.
Shelf for packing material, adjustable faste-
ning set under worktop and divider hoops

! Suitability of lower shelves to 750 and 900 mm deep benches:
Concept 2000/1800 -> SPM1500 or smaller
Concept 1500 -> SPM1200 or smaller
Concept 1200 -> SPM900 or smaller
Concept 1000 -> SPM500.

Shelf for packing material and brackets for
upright tube

Roll holders
Name Max roll Max Suitable Code
length mm load kg for
Roll holder set 635 40 M750 890 547-49P
Roll holder set 785 40 M900 890 548-49P
Roll holder set 1400 40 M1500 859 041-49P Roll holder set
Roll holder set 1700 40 M1800 859 042-49P
Roll holder set under worktop 1500 1200 40 M1500 859 044-49P
Roll holder set under worktop 1800 1500 40 M1800 859 045-49P
Paper roll dividers (2 pcs) Ø 170 mm RD25

Roll holder set under worktop
+
Paper roll holders and cutters on page 82.

Paper roll divider

60 Treston - For a better work environment
