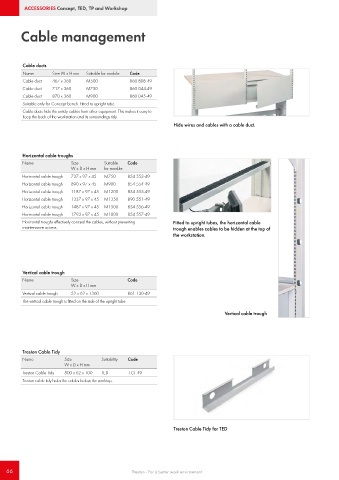

Page 66 - Treston main catalogue 2021

ACCESSORIES Concept, TED, TP and Workshop

Cable management

Cable ducts
Name Size W x H mm Suitable for module Code
Cable duct 467 x 360 M500 860 808-49
Cable duct 717 x 360 M750 860 044-49
Cable duct 870 x 360 M900 860 045-49
Suitable only for Concept bench. Fitted to upright tube.
Cable ducts hide the untidy cables from other equipment. This makes it easy to
keep the back of the workstation and its surroundings tidy.
Hide wires and cables with a cable duct.

Horizontal cable troughs
Name Size Suitable Code
W x D x H mm for module
Horizontal cable trough 737 x 97 x 45 M750 854 553-49
Horizontal cable trough 890 x 97 x 45 M900 854 554-49
Horizontal cable trough 1187 x 97 x 45 M1200 854 555-49
Horizontal cable trough 1337 x 97 x 45 M1350 890 551-49
Horizontal cable trough 1487 x 97 x 45 M1500 854 556-49
Horizontal cable trough 1793 x 97 x 45 M1800 854 557-49
Horizontal troughs effectively conceal the cables, without preventing Fitted to upright tubes, the horizontal cable
maintenance access. trough enables cables to be hidden at the top of
the workstation.

Vertical cable trough
Name Size Code
W x D x H mm
Vertical cable trough 52 x 62 x 1360 861 130-49
The vertical cable trough is fitted on the side of the upright tube.
Vertical cable trough

Treston Cable Tidy
Name Size Suitability Code
W x D x H mm
Treston Cable Tidy 800 x 62 x 100 TED TCT-49
Treston cable tidy hides the cables below the worktop.

Treston Cable Tidy for TED
