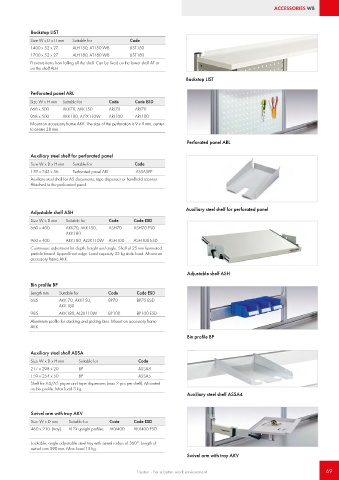

Page 69 - Treston main catalogue 2021

ACCESSORIES WB

Backstop LIST
Size W x D x H mm Suitable for Code
1400 x 52 x 27 ALH150, AT150 WB LIST150
1700 x 52 x 27 ALH180, AT180 WB LIST180
Prevents items from falling off the shelf. Can be fixed on the lower shelf AT or
on the shelf ALH.

Backstop LIST

Perforated panel ARL
Size W x H mm Suitable for Code Code ESD
668 x 500 AKK70, AKK150 ARL70 ARL70
968 x 500 AKK180, AL2X110W ARL100 ARL100
Mount on accessory frame AKK. The size of the perforation is 9 x 9 mm, center
to center 38 mm.
Perforated panel ARL

Auxiliary steel shelf for perforated panel
Size W x D x H mm Suitable for Code
159 x 243 x 56 Perforated panel ARL ASSA5PP
Auxiliary steel shelf for A5 documents, tape dispenser or handheld scanner.
Attached to the perforated panel.

Auxiliary steel shelf for perforated panel
Adjustable shelf ASH
Size W x D mm Suitable for Code Code ESD
660 x 400 AKK70, AKK150, ASH70 ASH70 ESD
AKK180
960 x 400 AKK180, AL2X110W ASH100 ASH100 ESD
Continuous adjustment for depth, height and angle. Shelf of 25 mm laminated
particle board. Lipped front edge. Load capacity 35 kg static load. Mount on
accessory frame AKK.

Adjustable shelf ASH

Bin profile BP
Length mm Suitable for Code Code ESD
685 AKK 70, AKK150, BP70 BP70 ESD
AKK180
985 AKK180, AL2X110W BP100 BP100 ESD
Aluminium profile for stacking and picking bins. Mount on accessory frame
AKK.
Bin profile BP

Auxiliary steel shelf ASSA
Size W x D x H mm Suitable for Code
217 x 298 x 20 BP ASSA4
159 x 254 x 50 BP ASSA5
Shelf for A4/A5 paper and tape dispensers (max 2 pcs per shelf). Mounted
on bin profile. Max load 3 kg.
Auxiliary steel shelf ASSA4

Swivel arm with tray AKV
Size W x D mm Suitable for Code Code ESD
460 x 210 (tray) AL2X upright profiles AKV400 AKV400 ESD

Lockable, angle adjustable steel tray with swivel radius of 360°. Length of
swivel arm 590 mm. Max. load 15 kg.
Swivel arm with tray AKV

Treston - For a better work environment 69
