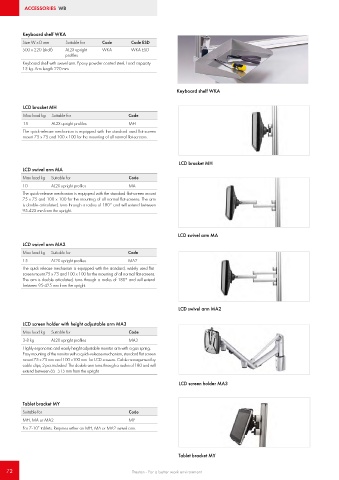

Page 72 - Treston main catalogue 2021

ACCESSORIES WB

Keyboard shelf WKA
Size W x D mm Suitable for Code Code ESD
500 x 220 (shelf) AL2X upright WKA WKA ESD
profiles
Keyboard shelf with swivel arm. Epoxy powder coated steel. Load capacity
15 kg. Arm length 220 mm.

Keyboard shelf WKA

LCD bracket MH
Max load kg Suitable for Code
15 AL2X upright profiles MH
The quick-release mechanism is equipped with the standard used flat-screen
mount 75 x 75 and 100 x 100 for the mounting of all normal flat-screens.

LCD bracket MH
LCD swivel arm MA
Max load kg Suitable for Code
10 AL2X upright profiles MA
The quick-release mechanism is equipped with the standard flat-screen mount
75 x 75 and 100 x 100 for the mounting of all normal flat-screens. The arm
is double articulated, turns through a radius of 180° and will extend between
95-425 mm from the upright.

LCD swivel arm MA
LCD swivel arm MA2
Max load kg Suitable for Code
15 AL2X upright profiles MA2
The quick-release mechanism is equipped with the standard, widely used flat-
screen mount 75 x 75 and 100 x 100 for the mounting of all normal flat-screens.
The arm is double articulated, turns through a radius of 180° and will extend
between 95-425 mm from the upright.

LCD swivel arm MA2

LCD screen holder with height adjustable arm MA3
Max load kg Suitable for Code
3-8 kg AL2X upright profiles MA3
Highly ergonomic and easily height adjustable monitor arm with a gas spring.
Easy mounting of the monitor with a quick-release mechanism, standard flat screen
mount 75 x 75 mm and 100 x100 mm for LCD screens. Cable management by
cable clips, 2 pcs included. The double arm turns through a radius of 180 and will
extend between 65–515 mm from the upright.
LCD screen holder MA3

Tablet bracket MY
Suitable for Code
MH, MA or MA2 MY
For 7-10” tablets. Requires either an MH, MA or MA2 swivel arm.

Tablet bracket MY

72 Treston - For a better work environment
