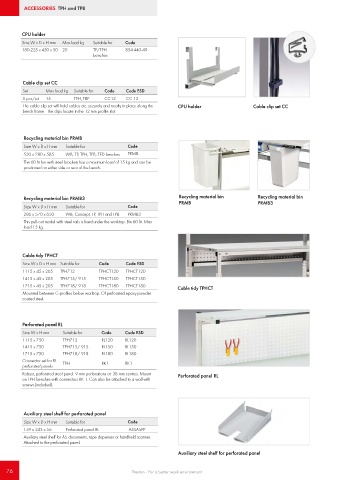

Page 76 - Treston main catalogue 2021

ACCESSORIES TPH and TPB

CPU holder
Size W x D x H mm Max load kg Suitable for Code
180-225 x 450 x 50 20 TP/TPH 854 440-49
benches

Cable clip set CC
Set Max load kg Suitable for Code Code ESD
5 pcs/set 15 TPH, TBP CC12 CC 12
The cable clip set will hold cables etc. securely and neatly in place along the CPU holder Cable clip set CC
bench frame. The clips locate in the 12 mm profile slot.

Recycling material bin PRMB
Size W x D x H mm Suitable for Code
530 x 280 x 585 WB, TP, TPH, TPB, TED benches PRMB
The 60 ltr bin with steel brackets has a maximum load of 15 kg and can be
positioned on either side or rear of the bench.

Recycling material bin PRMB3 Recycling material bin Recycling material bin
PRMB PRMB3
Size W x D x H mm Suitable for Code
286 x 570 x 650 WB, Concept, TP, TPH and TPB PRMB3
This pull-out model with steel rails is fixed under the worktop. Bin 60 ltr. Max
load 15 kg.

Cable tidy TPHCT
Size W x D x H mm Suitable for Code Code ESD
1115 x 45 x 205 TPH712 TPHCT120 TPHCT120
1415 x 45 x 205 TPH715/ 915 TPHCT150 TPHCT150
1715 x 45 x 205 TPH718/ 918 TPHCT180 TPHCT180 Cable tidy TPHCT
Mounted between C-profiles below worktop. Of perforated epoxy powder
coated steel.

Perforated panel RL
Size W x H mm Suitable for Code Code ESD
1115 x 750 TPH712 RL120 RL120
1415 x 750 TPH715/ 915 RL150 RL150
1715 x 750 TPH718/ 918 RL180 RL180
Connector set for RL
perforated panels TPH RK1 RK1
Robust, perforated steel panel. 9 mm perforations at 38 mm centres. Mount Perforated panel RL
on TPH-benches with connectors RK 1. Can also be attached to a wall with
screws (included).

Auxiliary steel shelf for perforated panel
Size W x D x H mm Suitable for Code
159 x 243 x 56 Perforated panel RL ASSA5PP
Auxiliary steel shelf for A5 documents, tape dispenser or handheld scanner.
Attached to the perforated panel.

Auxiliary steel shelf for perforated panel

76 Treston - For a better work environment
