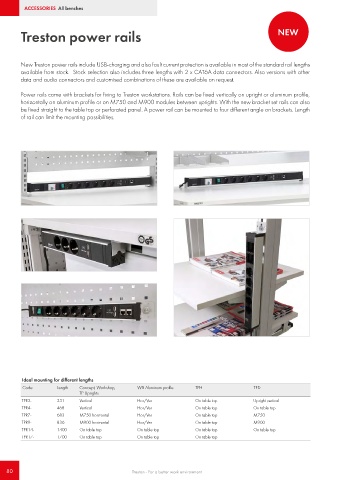

Page 80 - Treston main catalogue 2021

ACCESSORIES All benches

Treston power rails NEW

New Treston power rails include USB-charging and also fault current protection is available in most of the standard rail lengths
available from stock. Stock selection also includes three lengths with 2 x CAT6A data connectors. Also versions with other
data and audio connectors and customised combinations of these are available on request.

Power rails come with brackets for fixing to Treston workstations. Rails can be fixed vertically on upright or aluminum profile,
horizontally on aluminum profile or on M750 and M900 modules between uprights. With the new bracket set rails can also
be fixed straight to the table top or perforated panel. A power rail can be mounted to four different angle on brackets. Length
of rail can limit the mounting possibilities.

Ideal mounting for different lengths
Code Length Concept, Workshop, WB Aluminum profile TPH TED
TP Uprights
TPR3- 331 Vertical Hor/Ver On table top Upright vertical
TPR4- 468 Vertical Hor/Ver On table top On table top
TPR7- 683 M750 horizontal Hor/Ver On table top M750
TPR9- 836 M900 horizontal Hor/Ver On table top M900
TPR14- 1400 On table top On table top On table top On table top
TPR17- 1700 On table top On table top On table top

80 Treston - For a better work environment
