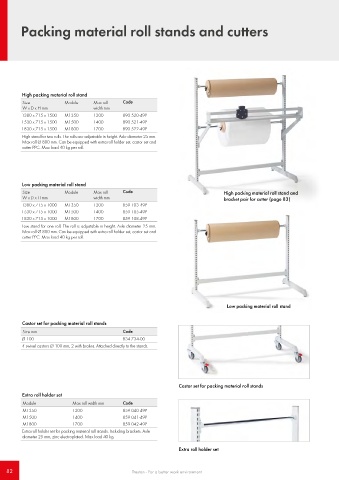

Page 82 - Treston main catalogue 2021
P. 82

Packing material roll stands and cutters













         High packing material roll stand
         Size           Module    Max roll   Code
         W x D x H mm             width mm
         1380 x 715 x 1500  M1350  1200     890 520-49P
         1530 x 715 x 1500  M1500  1400     890 521-49P
         1830 x 715 x 1500  M1800  1700     890 522-49P
         High stand for two rolls. The rolls are adjustable in height. Axle diameter 25 mm.
         Max roll Ø 800 mm. Can be equipped with extra roll holder set, castor set and
         cutter PPC. Max load 40 kg per roll.






         Low packing material roll stand
         Size           Module    Max roll   Code                               High packing material roll stand and
         W x D x H mm             width mm                                      bracket pair for cutter (page 83)
         1380 x 715 x 1000  M1350  1200     859 103-49P
         1530 x 715 x 1000  M1500  1400     859 105-49P
         1830 x 715 x 1000  M1800  1700     859 108-49P
         Low stand for one roll. The roll is adjustable in height. Axle diameter 25 mm.
         Max roll Ø 800 mm. Can be equipped with extra roll holder set, castor set and
         cutter PPC. Max load 40 kg per roll.













                                                                                 Low packing material roll stand


         Castor set for packing material roll stands
         Size mm                            Code
         Ø 100                              834 734-00
         4 swivel castors Ø 100 mm, 2 with brakes. Attached directly to the stands.







                                                                Castor set for packing material roll stands
         Extra roll holder set
         Module           Max roll width mm  Code
         M1350            1200              859 040-49P
         M1500            1400              859 041-49P
         M1800            1700              859 042-49P
         Extra roll holder set for packing material roll stands. Including brackets. Axle
         diameter 25 mm, zinc electroplated. Max load 40 kg.

                                                                Extra roll holder set


   82                                          Treston - For a better work environment
