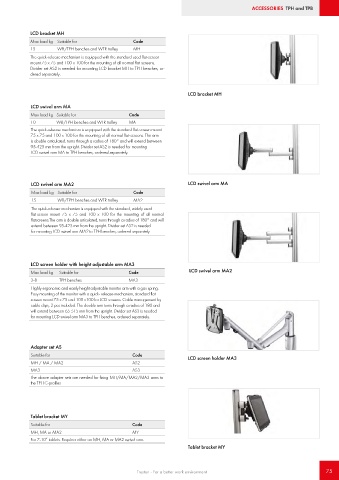

Page 75 - Treston main catalogue 2021

ACCESSORIES TPH and TPB

LCD bracket MH
Max load kg Suitable for Code
15 WB/TPH benches and WTR trolley MH
The quick-release mechanism is equipped with the standard used flat-screen
mount 75 x 75 and 100 x 100 for the mounting of all normal flat-screens.
Divider set AS2 is needed for mounting LCD bracket MH to TPH benches, or-
dered separately.

LCD bracket MH

LCD swivel arm MA
Max load kg Suitable for Code
10 WB/TPH benches and WTR trolley MA
The quick-release mechanism is equipped with the standard flat-screen mount
75 x 75 and 100 x 100 for the mounting of all normal flat-screens. The arm
is double articulated, turns through a radius of 180° and will extend between
95-425 mm from the upright. Divider set AS2 is needed for mounting
LCD swivel arm MA to TPH benches, ordered separately.

LCD swivel arm MA2 LCD swivel arm MA
Max load kg Suitable for Code
15 WB/TPH benches and WTR trolley MA2
The quick-release mechanism is equipped with the standard, widely used
flat-screen mount 75 x 75 and 100 x 100 for the mounting of all normal
flatscreens.The arm is double articulated, turns through a radius of 180° and will
extend between 95-425 mm from the upright. Divider set AS2 is needed
for mounting LCD swivel arm MA2 to TPH benches, ordered separately.

LCD screen holder with height adjustable arm MA3
Max load kg Suitable for Code LCD swivel arm MA2
3-8 TPH benches MA3
Highly ergonomic and easily height adjustable monitor arm with a gas spring.
Easy mounting of the monitor with a quick- release mechanism, standard flat
screen mount 75 x 75 and 100 x100 for LCD screens. Cable management by
cable clips, 2 pcs included. The double arm turns through a radius of 180 and
will extend between 65-515 mm from the upright. Divider set AS3 is needed
for mounting LCD swivel arm MA3 to TPH benches, ordered separately.

Adapter set AS
Suitable for Code
LCD screen holder MA3
MH / MA / MA2 AS2
MA3 AS3
The above adapter sets are needed for fixing MH/MA/MA2/MA3 arms to
the TPH C-profiles

Tablet bracket MY
Suitable for Code
MH, MA or MA2 MY
For 7-10” tablets. Requires either an MH, MA or MA2 swivel arm.
Tablet bracket MY

Treston - For a better work environment 75
