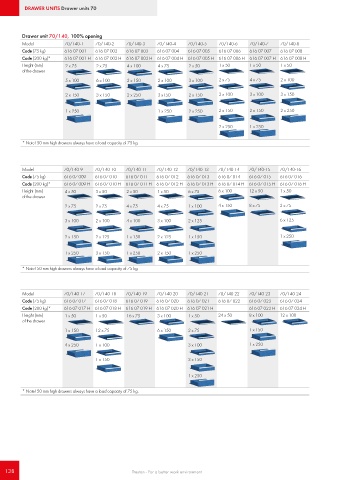

Page 138 - Treston main catalogue 2021

DRAWER UNITS Drawer units 70

Drawer unit 70/140, 100% opening
Model 70/140-1 70/140-2 70/140-3 70/140-4 70/140-5 70/140-6 70/140-7 70/140-8
Code (75 kg) 616 07 001 616 07 002 616 07 003 616 07 004 616 07 005 616 07 006 616 07 007 616 07 008
Code (200 kg)* 616 07 001 H 616 07 002 H 616 07 003 H 616 07 004 H 616 07 005 H 616 07 006 H 616 07 007 H 616 07 008 H
Height (mm) 2 x 75 2 x 75 4 x 100 4 x 75 2 x 50 1 x 50 1 x 50 1 x 50
of the drawer
5 x 100 6 x 100 2 x 150 2 x 100 3 x 100 2 x 75 4 x 75 2 x 100

2 x 150 3 x 150 2 x 250 3 x150 2 x 150 2 x 100 3 x 100 3 x 150

1 x 250 1 x 250 2 x 250 2 x 150 2 x 150 2 x 250

2 x 250 1 x 250

* Note! 50 mm high drawers always have a load capacity of 75 kg.

Model 70/140-9 70/140-10 70/140-11 70/140-12 70/140-13 70/140-14 70/140-15 70/140-16
Code (75 kg) 616 07 009 616 07 010 616 07 011 616 07 012 616 07 013 616 07 014 616 07 015 616 07 016
Code (200 kg)* 616 07 009 H 616 07 010 H 616 07 011 H 616 07 012 H 616 07 013 H 616 07 014 H 616 07 015 H 616 07 016 H
Height (mm) 4 x 50 3 x 50 2 x 50 1 x 50 6 x 75 6 x 100 12 x 50 1 x 50
of the drawer

2 x 75 2 x 75 4 x 75 4 x 75 1 x 100 4 x 150 8 x 75 2 x 75

3 x 100 2 x 100 4 x 100 3 x 100 2 x 125 6 x 125

2 x 150 2 x 125 1 x 150 2 x 125 1 x 150 1 x 250

1 x 250 3 x 150 1 x 250 2 x 150 1 x 250

* Note! 50 mm high drawers always have a load capacity of 75 kg.

Model 70/140-17 70/140-18 70/140-19 70/140-20 70/140-21 70/140-22 70/140-23 70/140-24
Code (75 kg) 616 07 017 616 07 018 616 07 019 616 07 020 616 07 021 616 07 022 616 07 023 616 07 024
Code (200 kg)* 616 07 017 H 616 07 018 H 616 07 019 H 616 07 020 H 616 07 021 H 616 07 023 H 616 07 024 H
Height (mm) 1 x 50 1 x 50 16 x 75 3 x 100 1 x 50 24 x 50 8 x 100 12 x 100
of the drawer
1 x 150 12 x 75 6 x 150 2 x 75 1 x 150

4 x 250 1 x 100 3 x 100 1 x 250

1 x 150 3 x 150

1 x 250

* Note! 50 mm high drawers always have a load capacity of 75 kg.
