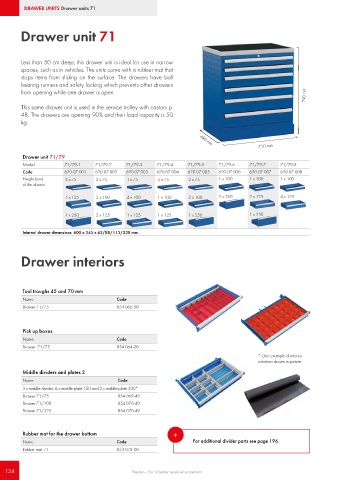

Page 134 - Treston main catalogue 2021

DRAWER UNITS Drawer units 71

Drawer unit 71

Less than 50 cm deep, this drawer unit is ideal for use in narrow
spaces, such as in vehicles. The units come with a rubber mat that
stops items from sliding on the surface. The drawers have ball
bearing runners and safety locking which prevents other drawers
790 mm
from opening while one drawer is open.

This same drawer unit is used in the service trolley with castors p.
48. The drawers are opening 90% and their load capacity is 50
kg.

480 mm
710 mm
Drawer unit 71/79
Model 71/79-1 71/79-2 71/79-3 71/79-4 71/79-5 71/79-6 71/79-7 71/79-8
Code 620 07 001 620 07 002 620 07 003 620 07 004 620 07 005 620 07 006 620 07 007 620 07 008
Height (mm) 3 x 75 2 x 75 1 x 75 5 x 75 2 x 75 1 x 100 1 x 100 1 x 100
of the drawer

1 x 125 2 x 100 4 x 100 1 x 100 2 x 100 2 x 250 2 x 125 4 x 125

1 x 250 2 x 125 1 x 125 1 x 125 1 x 250 1 x 250

Internal drawer dimensions: 600 x 345 x 63/88/113/238 mm.

Drawer interiors

Tool troughs 45 and 70 mm
Name Code
Drawer 71/75 854 066-00

Pick up boxes
Name Code
Drawer 71/75 854 064-00
* One example of interior
solutions shown in picture.
Middle dividers and plates 2
Name Code
3 x middle divider, 6 x middle plate 150 and 2 x middle plate 300*
Drawer 71/75 854 069-49
Drawer 71/100 854 070-49
Drawer 71/125 854 070-49

Rubber mat for the drawer bottom +
Name Code For additional divider parts see page 196.
Rubber mat 71 854 078-00
