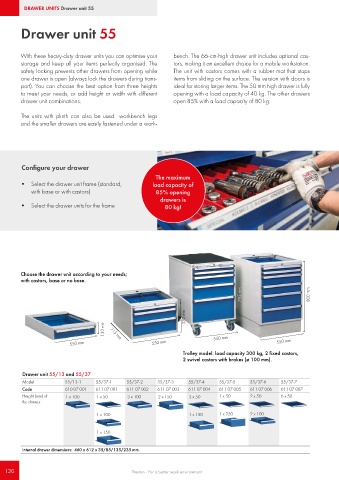

Page 130 - Treston main catalogue 2021

DRAWER UNITS Drawer unit 55

Drawer unit 55

With these heavy-duty drawer units you can optimise your bench. The 66-cm-high drawer unit includes optional cas-
storage and keep all your items perfectly organised. The tors, making it an excellent choice for a mobile workstation.
safety locking prevents other drawers from opening while The unit with castors comes with a rubber mat that stops
one drawer is open (always lock the drawers during trans- items from sliding on the surface. The version with doors is
port). You can choose the best option from three heights ideal for storing larger items. The 50 mm high drawer is fully
to meet your needs, or add height or width with different opening with a load capacity of 40 kg. The other drawers
drawer unit combinations. open 85% with a load capacity of 80 kg.

The units with plinth can also be used workbench legs
and the smaller drawers are easily fastened under a work-

Configure your drawer
The maximum
• Select the drawer unit frame (standard, load capacity of
with base or with castors) 85% opening
drawers is
• Select the drawer units for the frame 80 kg!

Choose the drawer unit according to your needs;
with castors, base or no base.
795 mm 800 mm

370 mm

130 mm 715 mm

550 mm 550 mm 550 mm 550 mm

Trolley model: load capacity 300 kg, 2 fixed castors,
2 swivel castors with brakes (ø 100 mm).

Drawer unit 55/13 and 55/37
Model 55/13-1 55/37-1 55/37-2 55/37-3 55/37-4 55/37-5 55/37-6 55/37-7
Code 610 07 001 611 07 001 611 07 002 611 07 003 611 07 004 611 07 005 611 07 006 611 07 007
Height (mm) of 1 x 100 1 x 50 3 x 100 2 x 150 3 x 50 1 x 50 2 x 50 6 x 50
the drawer
1 x 100 1 x 150 1 x 250 2 x 100

1 x 150

Internal drawer dimensions: 460 x 612 x 35/85/135/235 mm.
