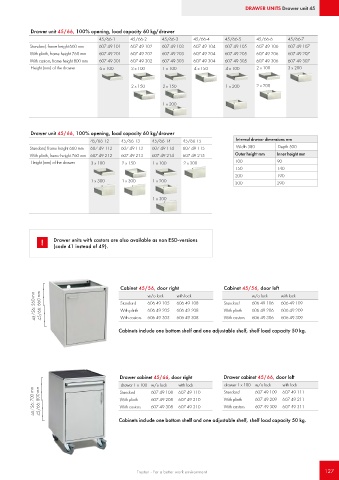

Page 127 - Treston main catalogue 2021

DRAWER UNITS Drawer unit 45

Drawer unit 45/66, 100% opening, load capacity 60 kg/drawer
45/66-1 45/66-2 45/66-3 45/66-4 45/66-5 45/66-6 45/66-7
Standard, frame height 660 mm 607 49 101 607 49 102 607 49 103 607 49 104 607 49 105 607 49 106 607 49 107
With plinth, frame height 760 mm 607 49 201 607 49 202 607 49 203 607 49 204 607 49 205 607 49 206 607 49 207
With castors, frame height 800 mm 607 49 301 607 49 302 607 49 303 607 49 304 607 49 305 607 49 306 607 49 307
Height (mm) of the drawer 6 x 100 3 x 100 1 x 100 4 x 150 4 x 100 2 x 100 3 x 200

2 x 150 2 x 150 1 x 200 2 x 200

1 x 200

Drawer unit 45/66, 100% opening, load capacity 60 kg/drawer
45/66-12 45/66-13 45/66-14 45/66-15 Internal drawer dimensions mm
Standard, frame height 660 mm 607 49 112 607 49 113 607 49 114 607 49 115 Width 380 Depth 500
With plinth, frame height 760 mm 607 49 212 607 49 213 607 49 214 607 49 215 Outer height mm Inner height mm
Height (mm) of the drawer 3 x 100 2 x 150 1 x 100 2 x 300 100 90
150 140
200 190
1 x 300 1 x 300 1 x 200 300 290

1 x 300

! Drawer units with castors are also available as non ESD-versions
(code 41 instead of 49).

Cabinet 45/56, door right with lock Cabinet 45/56, door left with lock
45/56: 560 mm 45/66: 660 mm Standard 606 49 105 606 49 108 Standard 606 49 106 606 49 109
w/o lock

w/o lock
606 49 206
With plinth
606 49 208
606 49 205
606 49 209
With plinth
606 49 308
606 49 306
With castors
606 49 309
606 49 305
With castors
Cabinets include one bottom shelf and one adjustable shelf, shelf load capacity 50 kg.
Drawer cabinet 45/66, door right Drawer cabinet 45/66, door left
drawer 1 x 100 w/o lock with lock drawer 1 x 100 w/o lock with lock
45/56: 700 mm 45/66: 800 mm With plinth 607 49 208 607 49 210 With plinth 607 49 209 607 49 211
607 49 111
607 49 109
607 49 110
Standard
Standard
607 49 108
607 49 309
607 49 311
With castors
With castors
607 49 310
607 49 308
Cabinets include one bottom shelf and one adjustable shelf, shelf load capacity 50 kg.
