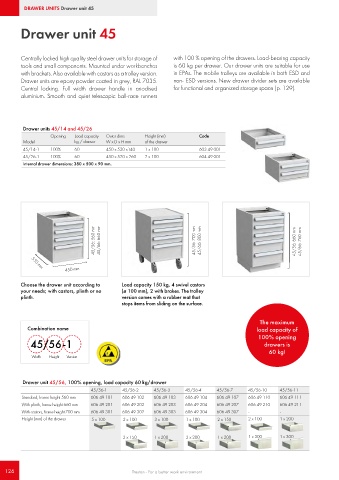

DRAWER UNITS Drawer unit 45


        Drawer unit 45





        Centrally locked high quality steel drawer units for storage of   with 100 % opening of the drawers. Load-bearing capacity
        tools and small components. Mounted under workbenches   is 60 kg per drawer. Our drawer units are suitable for use
        with brackets. Also available with castors as a trolley version.   in EPAs. The mobile trolleys are available in both ESD and
        Drawer units are epoxy powder coated in grey, RAL 7035.   non- ESD versions. New drawer divider sets are available
        Central locking. Full width drawer handle in anodised   for functional and organized storage space (p. 129).
        aluminium. Smooth and quiet telescopic ball-race runners






         Drawer units 45/14 and 45/26
                   Opening  Load capacity   Outer dims    Height (mm)   Code
         Model             kg / drawer  W x D x H mm  of the drawer
         45/14-1   100%    60         450 x 520 x140  1 x 100          603 49 001
         45/26-1   100%    60         450 x 520 x 260  2 x 100         604 49 001
         Internal drawer dimensions: 380 x 500 x 90 mm.












                                  45/56: 560 mm   45/66: 660 mm       45/56: 700 mm   45/66: 800 mm      45/56: 660 mm  45/66: 760 mm







                        450 mm
            520 mm

        Choose the drawer unit according to   Load capacity 150 kg, 4 swivel castors
        your needs; with castors, plinth or no   (ø 100 mm), 2 with brakes. The trolley
        plinth.                             version comes with a rubber mat that
                                            stops items from sliding on the surface.


                                                                                            The maximum
           Combination name                                                                load capacity of
                                                                                            100% opening
            45/56-1                                                                           drawers is
                                                                                               60 kg!
            Width         Height        Version



         Drawer unit 45/56, 100% opening, load capacity 60 kg/drawer
                                 45/56-1    45/56-2    45/56-3    45/56-4    45/56-7    45/56-10   45/56-11
         Standard, frame height 560 mm  606 49 101  606 49 102  606 49 103  606 49 104  606 49 107  606 49 110  606 49 111
         With plinth, frame height 660 mm  606 49 201  606 49 202  606 49 203  606 49 204  606 49 207  606 49 210  606 49 211
         With castors, frame height 700 mm  606 49 301  606 49 302  606 49 303  606 49 304  606 49 307  -  -
         Height (mm) of the drawer  5 x 100  2 x 100   3 x 100    1 x 100    2 x 150    2 x 100    1 x 200


                                            2 x 150    1 x 200    2 x 200    1 x 200    1 x 300    1 x 300
