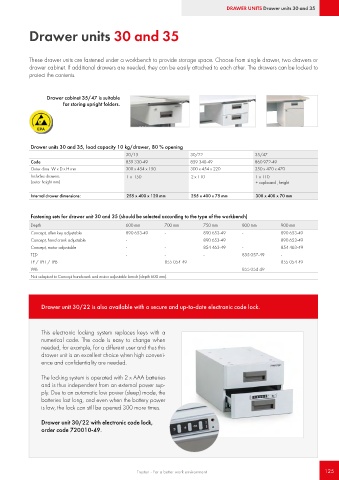

DRAWER UNITS Drawer units 30 and 35

Drawer units 30 and 35

These drawer units are fastened under a workbench to provide storage space. Choose from single drawer, two drawers or
drawer cabinet. If additional drawers are needed, they can be easily attached to each other. The drawers can be locked to
protect the contents.

Drawer cabinet 35/47 is suitable
for storing upright folders.

Drawer units 30 and 35, load capacity 10 kg/drawer, 80 % opening
30/15 30/22 35/47
Code 859 330-49 859 340-49 860 972-49
Outer dims W x D x H mm 300 x 454 x 150 300 x 454 x 220 350 x 470 x 470
Includes drawers 1 x 150 2 x 110 1 x 110
(outer height mm) + cupboard , height

Internal drawer dimensions: 255 x 400 x 120 mm 255 x 400 x 75 mm 300 x 400 x 70 mm

Fastening sets for drawer unit 30 and 35 (should be selected according to the type of the workbench)
Depth 600 mm 700 mm 750 mm 800 mm 900 mm
Concept, allen key adjustable 890 653-49 - 890 653-49 - 890 653-49
Concept, hand crank adjustable - 890 653-49 890 653-49
Concept, motor adjustable - - 854 463-49 - 854 463-49
TED - - - 855 057-49 -
TP / TPH / TPB - 855 054-49 - - 855 054-49
WB - - - 855 054-49 -
Not adapted to Concept handcrank and motor adjustable bench (depth 600 mm).

Drawer unit 30/22 is also available with a secure and up-to-date electronic code lock.

This electronic locking system replaces keys with a
numerical code. The code is easy to change when
needed, for example, for a different user and thus this
drawer unit is an excellent choice when high conveni-
ence and confidentiality are needed.

The locking system is operated with 2 x AAA batteries
and is thus independent from an external power sup-
ply. Due to an automatic low power (sleep) mode, the
batteries last long, and even when the battery power
is low, the lock can still be opened 300 more times.

Drawer unit 30/22 with electronic code lock,
order code 720010-49.
