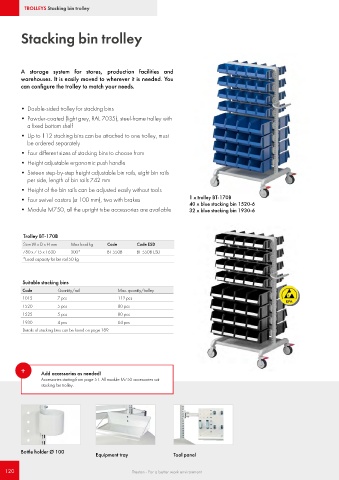

Page 120 - Treston main catalogue 2021

TROLLEYS Stacking bin trolley

Stacking bin trolley

A storage system for stores, production facilities and
warehouses. It is easily moved to wherever it is needed. You
can configure the trolley to match your needs.

• Double-sided trolley for stacking bins
• Powder-coated (light grey, RAL 7035), steel-frame trolley with
a fixed bottom shelf
• Up to 112 stacking bins can be attached to one trolley, must
be ordered separately
• Four different sizes of stacking bins to choose from
• Height adjustable ergonomic push handle
• Sixteen step-by-step height adjustable bin rails, eight bin rails
per side, length of bin rails 742 mm
• Height of the bin rails can be adjusted easily without tools
• Four swivel castors (ø 100 mm), two with brakes 1 x trolley BT-170B
40 x blue stacking bin 1520-6
• Module M750, all the upright tube accessories are available 32 x blue stacking bin 1930-6

Trolley BT-170B
Size W x D x H mm Max load kg Code Code ESD
780 x 715 x 1630 300* BT-550B BT-550B ESD
*Load capacity for bin rail 50 kg

Suitable stacking bins
Code Quantity/rail Max. quantity/trolley
1015 7 pcs 112 pcs
1520 5 pcs 80 pcs
1525 5 pcs 80 pcs
1930 4 pcs 64 pcs
Details of stacking bins can be found on page 189.

+ Add accessories as needed!

Accessories starting from page 51. All module M750 accessories suit
stacking bin trolley.

Bottle holder Ø 100
Equipment tray Tool panel
