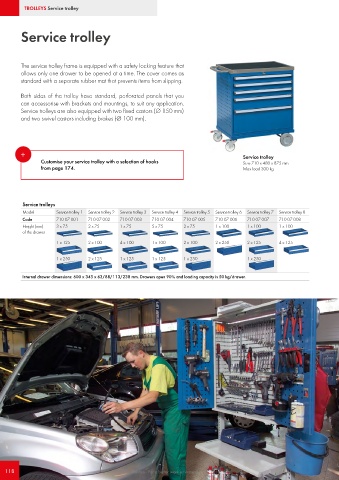

Page 118 - Treston main catalogue 2021

TROLLEYS Service trolley

Service trolley

The service trolley frame is equipped with a safety locking feature that
allows only one drawer to be opened at a time. The cover comes as
standard with a separate rubber mat that prevents items from slipping.

Both sides of the trolley have standard, perforated panels that you
can accessorise with brackets and mountings, to suit any application.
Service trolleys are also equipped with two fixed castors (Ø 150 mm)
and two swivel castors including brakes (Ø 100 mm).

+ Service trolley

Customise your service trolley with a selection of hooks Size 710 x 480 x 875 mm
from page 174. Max load 300 kg

Service trolleys
Model Service trolley 1 Service trolley 2 Service trolley 3 Service trolley 4 Service trolley 5 Service trolley 6 Service trolley 7 Service trolley 8
Code 710 07 001 710 07 002 710 07 003 710 07 004 710 07 005 710 07 006 710 07 007 710 07 008
Height (mm) 3 x 75 2 x 75 1 x 75 5 x 75 2 x 75 1 x 100 1 x 100 1 x 100
of the drawer

1 x 125 2 x 100 4 x 100 1 x 100 2 x 100 2 x 250 2 x 125 4 x 125

1 x 250 2 x 125 1 x 125 1 x 125 1 x 250 1 x 250

Internal drawer dimensions: 600 x 345 x 63/88/113/238 mm. Drawers open 90% and loading capacity is 50 kg/drawer.

118 Treston - For a better work environment
