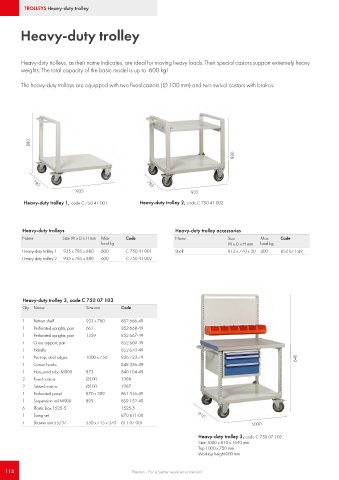

Page 116 - Treston main catalogue 2021

TROLLEYS Heavy-duty trolley

Heavy-duty trolley

Heavy-duty trolleys, as their name indicates, are ideal for moving heavy loads. Their special castors support extremely heavy
weights. The total capacity of the basic model is up to 600 kg!

The heavy-duty trolleys are equipped with two fixed castors (Ø 100 mm) and two swivel castors with brakes.

880

880

785
935 785 935

Heavy-duty trolley 1, code C 750 41 001 Heavy-duty trolley 2, code C 750 41 002

Heavy-duty trolleys Heavy-duty trolley accessories
Name Size W x D x H mm Max Code Name Size Max Code
load kg W x D x H mm load kg
Heavy-duty trolley 1 935 x 785 x 880 600 C 750 41 001 Shelf 812 x 770 x 30 400 852 671-49
Heavy-duty trolley 2 935 x 785 x 880 600 C 750 41 002

Heavy-duty trolley 3, code C 750 07 103
Qty Name Size mm Code

1 Bottom shelf 933 x 780 852 666-49
1 Perforated uprights, pair 661 852 668-49
1 Perforated uprights, pair 1359 852 667-49
1 Cross support, pair 852 669-49
1 Handle 852 670-49
1 Pvc-top, steel edges 1000 x 750 836 723-79 1640
1 Corner hooks 848 336-49
1 Horizontal tube M900 873 840 104-49
2 Fixed castors Ø100 1988
2 Swivel castors Ø100 1987
1 Perforated panel 870 x 389 861 516-49
1 Suspension rail M900 895 859 152-49
6 Plastic box 1525-5 1525-5
1 Fixing set 870 811-00 810
1 Drawer unit 55/37 550 x 715 x 370 611 07 001 1000

Heavy-duty trolley 3, code C 750 07 103
Size 1000 x 810 x 1640 mm
Top 1000 x 750 mm
Worktop height 900 mm

116 Treston - For a better work environment
