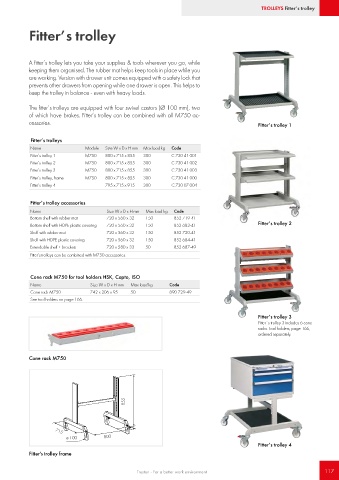

Page 117 - Treston main catalogue 2021

TROLLEYS Fitter’s trolley

Fitter’s trolley

A fitter’s trolley lets you take your supplies & tools wherever you go, while
keeping them organised. The rubber mat helps keep tools in place while you
are working. Version with drawer unit comes equipped with a safety lock that
prevents other drawers from opening while one drawer is open. This helps to
keep the trolley in balance - even with heavy loads.

The fitter’s trolleys are equipped with four swivel castors (Ø 100 mm), two
of which have brakes. Fitter’s trolley can be combined with all M750 ac-
cessories. Fitter’s trolley 1

Fitter’s trolleys
Name Module Size W x D x H mm Max load kg Code
Fitter’s trolley 1 M750 800 x 715 x 855 300 C 730 41 001
Fitter’s trolley 2 M750 800 x 715 x 855 300 C 730 41 002
Fitter’s trolley 3 M750 800 x 715 x 855 300 C 730 41 003
Fitter’s trolley, frame M750 800 x 715 x 855 300 C 730 41 000
Fitter’s trolley 4 795 x 715 x 915 300 C 730 07 004

Fitter’s trolley accessories
Name Size W x D x H mm Max load kg Code
Bottom shelf with rubber mat 720 x 560 x 32 150 852 719-41
Bottom shelf with HDPE plastic covering 720 x 560 x 32 150 852 683-41 Fitter’s trolley 2
Shelf with rubber mat 720 x 560 x 32 150 852 720-41
Shelf with HDPE plastic covering 720 x 560 x 32 150 852 684-41
Extendable shelf + brackets 720 x 580 x 33 50 852 687-49
Fitter’s trolleys can be combined with M750 accessories.

Cone rack M750 for tool holders HSK, Capto, ISO
Name Size W x D x H mm Max load kg Code
Cone rack M750 742 x 206 x 95 50 890 729-49
See tool holders on page 166.

Fitter’s trolley 3
Fitter´s trolley 3 includes 6 cone
racks. Tool holders, page 166,
ordered separately.

Cone rack M750

855

715
ø 100 800
Fitter’s trolley 4
Fitter's trolley frame

Treston - For a better work environment 117
