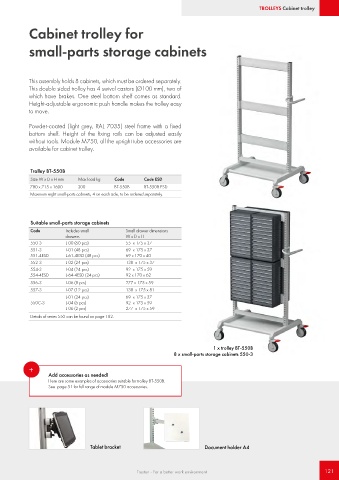

Page 121 - Treston main catalogue 2021

TROLLEYS Cabinet trolley

Cabinet trolley for

small-parts storage cabinets

This assembly holds 8 cabinets, which must be ordered separately.
This double sided trolley has 4 swivel castors (Ø100 mm), two of
which have brakes. One steel bottom shelf comes as standard.
Height-adjustable ergonomic push handle makes the trolley easy
to move.

Powder-coated (light grey, RAL 7035) steel frame with a fixed
bottom shelf. Height of the fixing rails can be adjusted easily
without tools. Module M750, all the upright tube accessories are
available for cabinet trolley.

Trolley BT-550B
Size W x D x H mm Max load kg Code Code ESD
780 x 715 x 1600 300 BT-550B BT-550B ESD
Maximum eight small-parts cabinets, 4 on each side, to be ordered separately.

Suitable small-parts storage cabinets
Code Includes small Small drawer dimensions
drawers W x D x H
550-3 L-00 (60 pcs) 55 x 175 x 37
551-3 L-01 (48 pcs) 69 x 175 x 37
551-4ESD L-61-4ESD (48 pcs) 69 x 170 x 40
552-3 L-02 (24 pcs) 138 x 175 x 37
554-3 L-04 (24 pcs) 92 x 175 x 59
554-4ESD L-64-4ESD (24 pcs) 92 x 170 x 62
556-3 L-06 (8 pcs) 277 x 175 x 59
557-3 L-07 (12 pcs) 138 x 175 x 81
L-01 (24 pcs) 69 x 175 x 37
550C-3 L-04 (6 pcs) 92 x 175 x 59
L-06 (2 pcs) 277 x 175 x 59
Details of series 550 can be found on page 182.

1 x trolley BT-550B
8 x small-parts storage cabinets 550-3

+
Add accessories as needed!
Here are some examples of accessories suitable for trolley BT-550B.
See page 51 for full range of module M750 accessories.

Tablet bracket Document holder A4

Treston - For a better work environment 121
