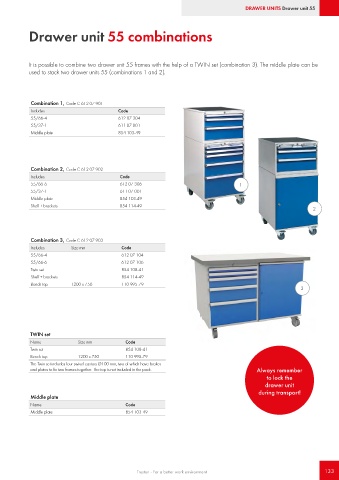

Page 133 - Treston main catalogue 2021

DRAWER UNITS Drawer unit 55

Drawer unit 55 combinations

It is possible to combine two drawer unit 55 frames with the help of a TWIN set (combination 3). The middle plate can be
used to stack two drawer units 55 (combinations 1 and 2).

Combination 1, Code C 612 07 901
Includes Code
55/66-4 612 07 304
55/37-1 611 07 001
Middle plate 854 103-49

Combination 2, Code C 612 07 902
Includes Code
55/66-6 612 07 306 1
55/37-1 611 07 001
Middle plate 854 103-49
Shelf + brackets 854 114-49
2

Combination 3, Code C 612 07 903
Includes Size mm Code
55/66-4 612 07 104
55/66-6 612 07 106
Twin set 854 108-41
Shelf + brackets 854 114-49
Bench top 1200 x 750 110 995-79
3

TWIN set
Name Size mm Code
Twin set 854 108-41
Bench top 1200 x 750 110 995-79
The Twin set includes four swivel castors Ø100 mm, two of which have brakes
and plates to fix two frames together. The top is not included in the pack. Always remember
to lock the
drawer unit
during transport!
Middle plate
Name Code
Middle plate 854 103-49

Treston - For a better work environment 133
