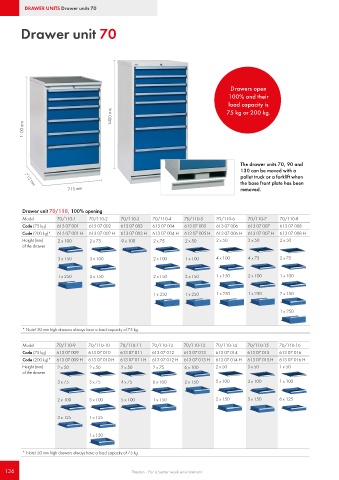

Page 136 - Treston main catalogue 2021

DRAWER UNITS Drawer units 70

Drawer unit 70

Drawers open
100% and their
load capacity is
1400 mm 75 kg or 200 kg.
1100 mm

The drawer units 70, 90 and
130 can be moved with a
pallet truck or a forklift when
the base front plate has been
715 mm
715 mm removed.

Drawer unit 70/110, 100% opening
Model 70/110-1 70/110-2 70/110-3 70/110-4 70/110-5 70/110-6 70/110-7 70/110-8
Code (75 kg) 613 07 001 613 07 002 613 07 003 613 07 004 613 07 005 613 07 006 613 07 007 613 07 008
Code (200 kg)* 613 07 001 H 613 07 002 H 613 07 003 H 613 07 004 H 613 07 005 H 613 07 006 H 613 07 007 H 613 07 008 H
Height (mm) 2 x 100 2 x 75 9 x 100 2 x 75 2 x 50 2 x 50 3 x 50 2 x 50
of the drawer

3 x 150 3 x 100 2 x 100 1 x 100 4 x 100 4 x 75 2 x 75

1 x 250 3 x 150 2 x 150 3 x 150 1 x 150 2 x 100 1 x 100

1 x 250 1 x 250 1 x 250 1 x 250 2 x 150

1 x 250

* Note! 50 mm high drawers always have a load capacity of 75 kg.

Model 70/110-9 70/110-10 70/110-11 70/110-12 70/110-13 70/110-14 70/110-15 70/110-16
Code (75 kg) 613 07 009 613 07 010 613 07 011 613 07 012 613 07 013 613 07 014 613 07 015 613 07 016
Code (200 kg)* 613 07 009 H 613 07 010 H 613 07 011 H 613 07 012 H 613 07 013 H 613 07 014 H 613 07 015 H 613 07 016 H
Height (mm) 2 x 50 2 x 50 2 x 50 2 x 75 6 x 100 2 x 50 3 x 50 1 x 50
of the drawer
3 x 75 3 x 75 4 x 75 6 x 100 2 x 150 5 x 100 3 x 100 1 x 100

2 x 100 3 x 100 5 x 100 1 x 150 2 x 150 3 x 150 6 x 125

3 x 125 1 x 125

1 x 150

* Note! 50 mm high drawers always have a load capacity of 75 kg.
