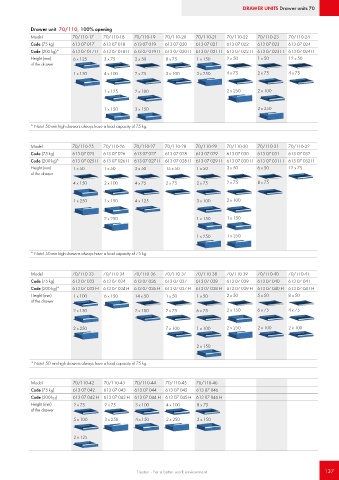

Page 137 - Treston main catalogue 2021
P. 137

DRAWER UNITS Drawer units 70



            Drawer unit  70/110, 100% opening
            Model          70/110-17  70/110-18  70/110-19  70/110-20  70/110-21  70/110-22  70/110-23  70/110-24
            Code (75 kg)   613 07 017  613 07 018  613 07 019  613 07 020  613 07 021  613 07 022  613 07 023  613 07 024
            Code (200 kg)*  613 07 017 H  613 07 018 H  613 07 019 H  613 07 020 H  613 07 021 H  613 07 022 H  613 07 023 H  613 07 024 H
            Height (mm)    6 x 125    3 x 75    2 x 50     8 x 75     1 x 150    2 x 50    1 x 50     12 x 50
            of the drawer
                           1 x 150    4 x 100   2 x 75     3 x 100    3 x 250    4 x 75    2 x 75     4 x 75


                                      1 x 125   2 x 100                          2 x 250   2 x 100

                                      1 x 150   3 x 150                                    2 x 250


            * Note! 50 mm high drawers always have a load capacity of 75 kg.



            Model          70/110-25  70/110-26  70/110-27  70/110-28  70/110-29  70/110-30  70/110-31  70/110-32
            Code (75 kg)   613 07 025  613 07 026  613 07 027  613 07 028  613 07 029  613 07 030  613 07 031  613 07 032
            Code (200 kg)*  613 07 025 H  613 07 026 H  613 07 027 H  613 07 028 H  613 07 029 H  613 07 030 H  613 07 031 H  613 07 032 H
            Height (mm)    1 x 50     1 x 50    2 x 50     15 x 50    1 x 50     3 x 50    6 x 50     12 x 75
            of the drawer
                           4 x 150    2 x 100   4 x 75     2 x 75     2 x 75     2 x 75    8 x 75


                           1 x 250    1 x 150   4 x 125               3 x 100    2 x 100

                                      2 x 250                         1 x 150    1 x 150


                                                                      1 x 250    1 x 250


            * Note! 50 mm high drawers always have a load capacity of 75 kg.



            Model          70/110-33  70/110-34  70/110-36  70/110-37  70/110-38  70/110-39  70/110-40  70/110-41
            Code (75 kg)   613 07 033  613 07 034  613 07 036  613 07 037  613 07 038  613 07 039  613 07 040  613 07 041
            Code (200 kg)*  613 07 033 H  613 07 034 H  613 07 036 H  613 07 037 H  613 07 038 H  613 07 039 H  613 07 040 H  613 07 041 H
            Height (mm)    1 x 100    6 x 150   14 x 50    1 x 50     1 x 50     2 x 50    5 x 50     8 x 50
            of the drawer

                           2 x 150              2 x 100    2 x 75     6 x 75     2 x 150   6 x 75     4 x 75

                           2 x 250                         7 x 100    1 x 100    2 x 250   2 x 100    2 x 100


                                                                      2 x 150


            * Note! 50 mm high drawers always have a load capacity of 75 kg.


            Model          70/110-42  70/110-43  70/110-44  70/110-45  70/110-46
            Code (75 kg)   613 07 042  613 07 043  613 07 044  613 07 045  613 07 046
            Code (200 kg)  613 07 042 H  613 07 043 H  613 07 044 H  613 07 045 H  613 07 046 H
            Height (mm)    2 x 75     2 x 75     3 x 100   4 x 100    8 x 75
            of the drawer
                           5 x 100    3 x 250    4 x 150   2 x 250    2 x 150


                           2 x 125






                                                 Treston - For a better work environment                           137
