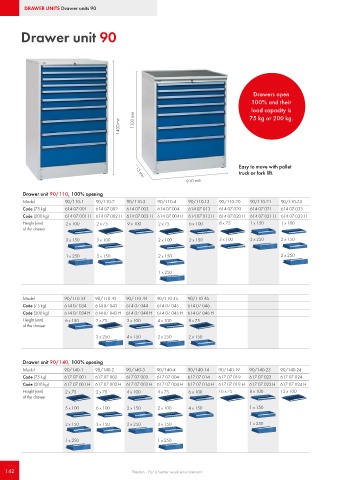

Page 142 - Treston main catalogue 2021

DRAWER UNITS Drawer units 90

Drawer unit 90

Drawers open
100% and their
load capacity is
75 kg or 200 kg.
1400 mm 1100 mm

Easy to move with pallet
truck or fork lift.
715 mm
910 mm

Drawer unit 90/110, 100% opening
Model 90/110-1 90/110-2 90/110-3 90/110-4 90/110-13 90/110-20 90/110-21 90/110-33
Code (75 kg) 614 07 001 614 07 002 614 07 003 614 07 004 614 07 013 614 07 020 614 07 021 614 07 033
Code (200 kg) 614 07 001 H 614 07 002 H 614 07 003 H 614 07 004 H 614 07 013 H 614 07 020 H 614 07 021 H 614 07 033 H
Height (mm) 2 x 100 2 x 75 9 x 100 2 x 75 6 x 100 8 x 75 1 x 150 1 x 100
of the drawer
3 x 150 3 x 100 2 x 100 2 x 150 3 x 100 3 x 250 2 x 150

1 x 250 3 x 150 2 x 150 2 x 250

1 x 250

Model 90/110-34 90/110-43 90/110-44 90/110-45 90/110-46
Code (75 kg) 614 07 034 614 07 043 614 07 044 614 07 045 614 07 046
Code (200 kg) 614 07 034 H 614 07 043 H 614 07 044 H 614 07 045 H 614 07 046 H
Height (mm) 6 x 150 2 x 75 3 x 100 4 x 100 8 x 75
of the drawer
3 x 250 4 x 150 2 x 250 2 x 150

Drawer unit 90/140, 100% opening
Model 90/140-1 90/140-2 90/140-3 90/140-4 90/140-14 90/140-19 90/140-23 90/140-24
Code (75 kg) 617 07 001 617 07 002 617 07 003 617 07 004 617 07 014 617 07 019 617 07 023 617 07 024
Code (200 kg) 617 07 001 H 617 07 002 H 617 07 003 H 617 07 004 H 617 07 014 H 617 07 019 H 617 07 023 H 617 07 024 H
Height (mm) 2 x 75 2 x 75 4 x 100 4 x 75 6 x 100 16 x 75 8 x 100 12 x 100
of the drawer

5 x 100 6 x 100 2 x 150 2 x 100 4 x 150 1 x 150

2 x 150 3 x 150 2 x 250 3 x 150 1 x 250

1 x 250 1 x 250
