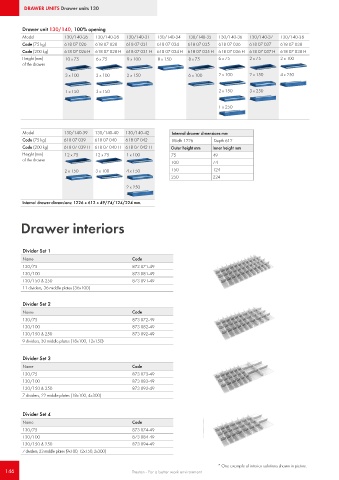

Page 146 - Treston main catalogue 2021

DRAWER UNITS Drawer units 130

Drawer unit 130/140, 100% opening
Model 130/140-26 130/140-28 130/140-31 130/140-34 130/140-35 130/140-36 130/140-37 130/140-38
Code (75 kg) 618 07 026 618 07 028 618 07 031 618 07 034 618 07 035 618 07 036 618 07 037 618 07 038
Code (200 kg) 618 07 026 H 618 07 028 H 618 07 031 H 618 07 034 H 618 07 035 H 618 07 036 H 618 07 037 H 618 07 038 H
Height (mm) 10 x 75 6 x 75 9 x 100 8 x 150 8 x 75 6 x 75 2 x 75 2 x 100
of the drawer
3 x 100 3 x 100 2 x 150 6 x 100 2 x 100 2 x 150 4 x 250

1 x 150 3 x 150 2 x 150 3 x 250

1 x 250

Model 130/140-39 130/140-40 130/140-42 Internal drawer dimensions mm
Code (75 kg) 618 07 039 618 07 040 618 07 042 Width 1226 Depth 612
Code (200 kg) 618 07 039 H 618 07 040 H 618 07 042 H Outer height mm Inner height mm
Height (mm) 12 x 75 12 x 75 1 x 100 75 49
of the drawer
100 74
2 x 150 3 x 100 4 x 150 150 124
250 224
2 x 250

Internal drawer dimensions: 1226 x 612 x 49/74/124/224 mm.

Drawer interiors

Divider Set 1
Name Code
130/75 873 071-49
130/100 873 081-49
130/150 & 250 873 091-49
11 dividers, 36 middle plates (36x100)

Divider Set 2
Name Code
130/75 873 072-49
130/100 873 082-49
130/150 & 250 873 092-49
9 dividers, 30 middle plates (18x100, 12x150)

Divider Set 3
Name Code
130/75 873 073-49
130/100 873 083-49
130/150 & 250 873 093-49
7 dividers, 22 middle plates (18x100, 4x300)

Divider Set 4
Name Code
130/75 873 074-49
130/100 873 084-49
130/150 & 250 873 094-49
7 dividers, 23 middle plates (9x100, 12x150, 2x300)

* One example of interior solutions shown in picture.
146 Treston - For a better work environment
