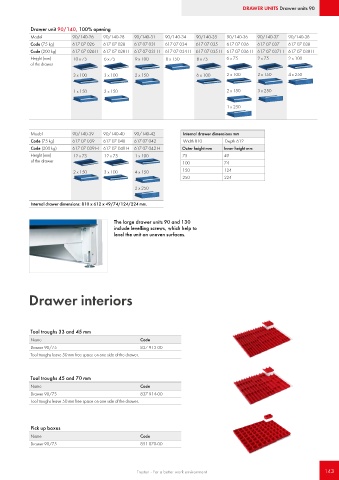

Page 143 - Treston main catalogue 2021

DRAWER UNITS Drawer units 90

Drawer unit 90/140, 100% opening
Model 90/140-26 90/140-28 90/140-31 90/140-34 90/140-35 90/140-36 90/140-37 90/140-38
Code (75 kg) 617 07 026 617 07 028 617 07 031 617 07 034 617 07 035 617 07 036 617 07 037 617 07 038
Code (200 kg) 617 07 026 H 617 07 028 H 617 07 031 H 617 07 034 H 617 07 035 H 617 07 036 H 617 07 037 H 617 07 038 H
Height (mm) 10 x 75 6 x 75 9 x 100 8 x 150 8 x 75 6 x 75 2 x 75 2 x 100
of the drawer
3 x 100 3 x 100 2 x 150 6 x 100 2 x 100 2 x 150 4 x 250

1 x 150 3 x 150 2 x 150 3 x 250

1 x 250

Model 90/140-39 90/140-40 90/140-42 Internal drawer dimensions mm
Code (75 kg) 617 07 039 617 07 040 617 07 042 Width 810 Depth 612
Code (200 kg) 617 07 039 H 617 07 040 H 617 07 042 H Outer height mm Inner height mm
Height (mm) 12 x 75 12 x 75 1 x 100 75 49
of the drawer 100 74
2 x 150 3 x 100 4 x 150 150 124
250 224

2 x 250

Internal drawer dimensions: 810 x 612 x 49/74/124/224 mm.

The large drawer units 90 and 130
include levelling screws, which help to
level the unit on uneven surfaces.

Drawer interiors

Tool troughs 33 and 45 mm
Name Code
Drawer 90/75 837 913-00
Tool troughs leave 50 mm free space on one side of the drawer.

Tool troughs 45 and 70 mm
Name Code
Drawer 90/75 837 914-00
Tool troughs leave 50 mm free space on one side of the drawer.

Pick up boxes
Name Code
Drawer 90/75 851 870-00

Treston - For a better work environment 143
