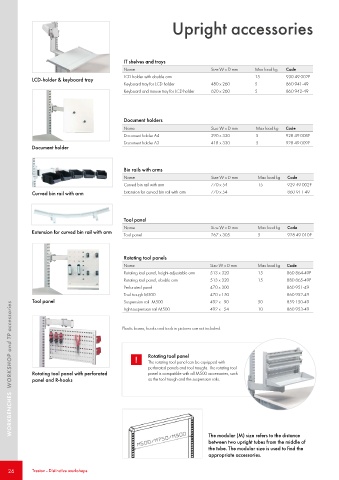

Page 26 - Treston

Upright accessories

IT shelves and trays
Name Size W x D mm Max load kg Code
LCD holder with double arm 15 930 49 002P
LCD-holder & keyboard tray
Keyboard tray for LCD holder 480 x 260 5 860 941-49
Keyboard and mouse tray for LCD holder 620 x 260 5 860 942-49

Document holders
Name Size W x D mm Max load kg Code
Document holder A4 290 x 330 5 928 49 008P
Document holder A3 418 x 330 5 928 49 009P
Document holder

Bin rails with arms
Name Size W x D mm Max load kg Code
Curved bin rail with arm 770 x 54 15 929 49 002P
Curved bin rail with arm Extension for curved bin rail with arm 770 x 54 860 911-49

Tool panel
Name Size W x D mm Max load kg Code
Extension for curved bin rail with arm
Tool panel 267 x 305 5 928 49 010P

Rotating tool panels
Name Size W x D mm Max load kg Code
Rotating tool panel, height-adjustable arm 513 x 320 15 860 864-49P
Rotating tool panel, double arm 513 x 320 15 880 865-49P
Perforated panel 470 x 300 860 951-49
Tool trough M500 470 x 150 860 952-49
Tool panel Suspension rail M500 492 x 90 50 859 150-49
WORKBENCHES WORKSHOP and TP accessories
Light suspension rail M500 492 x 54 10 860 953-49

Plastic boxes, hooks and tools in pictures are not included.

! Rotating tool panel
The rotating tool panel can be equipped with
perforated panels and tool troughs. The rotating tool
Rotating tool panel with perforated panel is compatible with all M500 accessories, such
panel and R-hooks as the tool trough and the suspension rails.

The modular (M) size refers to the distance
between two upright tubes from the middle of
the tube. The modular size is used to find the
appropriate accessories.

26 26 Treston - Distinctive workshops
